MFO100A Series
1 Channel Compact Fiber Optic Rotary Joints

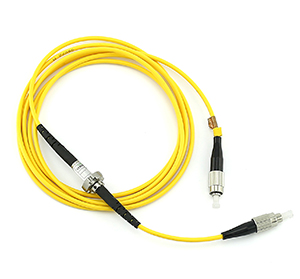

MFO100A slip rings
  • MFO100A fiber optic slip rings support 1 channel fiber optics(SM/MM). It can perfectly transmit data on 360° rotating. It is also especially suitable for occasion where it needs to transmit large volume data/signal from permanent position to rotation position on unlimited, continuous or discontinuous rotating, which can improve mechanical property,simplify system operation and avoid the rotating of turning joints destroy fiber optics.
  • Low insertion loss, high rotation speed
  • Non-contact, zero friction, long working life, single core can achieve one hundred million revolutions
  • Small in size, in light weight, high sealing class
  • Fiber optics transmitting signal, no leaks,no electromagnetic interference, long-distance transmission

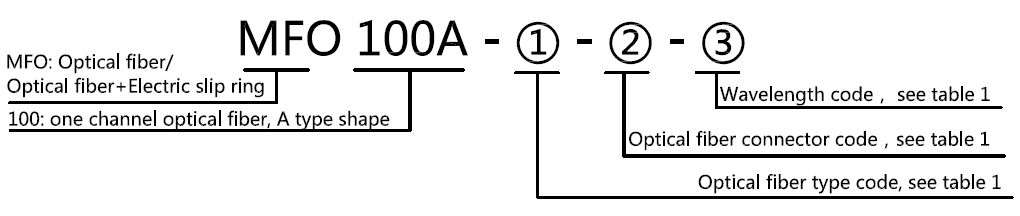

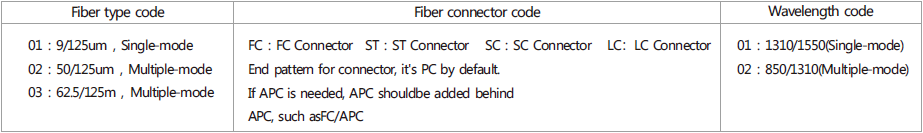

Standard series PART# Explanation

Specification
ItemsType
Single-modeMultiple-mode
WaveWidth(nm)±50
Max insert Loss,23℃(dB)1.20.7
Insert Loss Ripple(dB)0.60.4
Return Loss(dB)≥55(No connector)≥40(No connector)
Max Power(W)0.5
Weight(g)50
Max speed(rpm)1000
Working Life>500 million revs
Working Temp.(℃)-45~85
Storage Temperature(℃)-50~85
Protection gradeIP54
