MSP230 Series
MSP series Separated Slip Rings
MSP230 slip rings

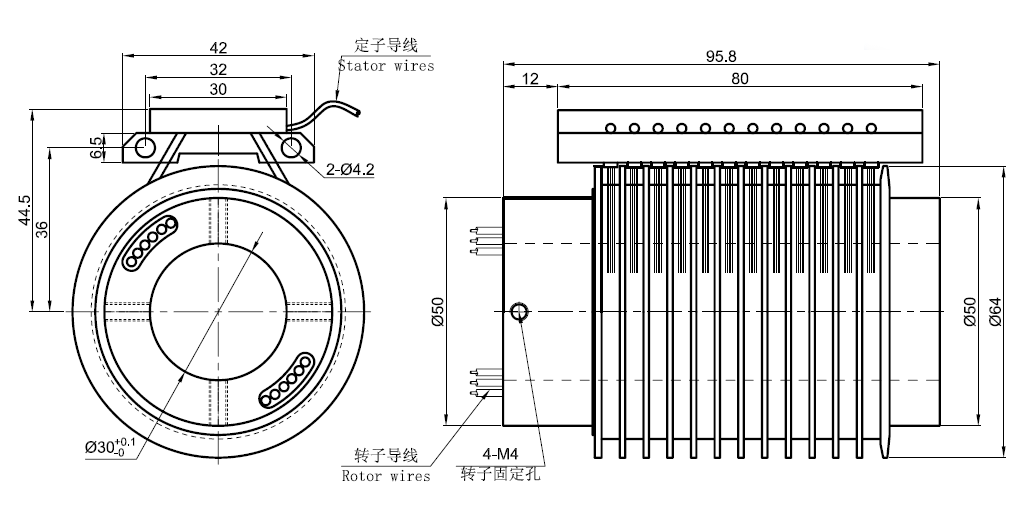

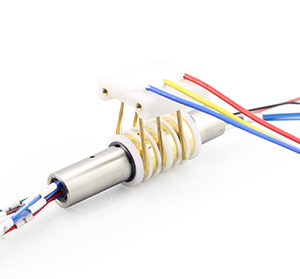

  • MSP230 split slip ring is the use of separate rotor and contact brush combination to support 12-way 10A / signal.
    Conductive ring with 90-degree V-slot design, torque small, low electrical noise.
    (Noted:It can be customized for the bore size and rings number according to customer's requirements)

  • MSP2309 is MSP230 high-end version,which used for military, aerospace, etc., see product quality level table
Product Quality Level Table
Part#Max speedWorking lifeTorqueElectrical noise①@10Rpm
MSP230150RPM10 million Revs0.1 N.m10mΩ
MSP2309400RPM50 million Revs0.05 N.m4mΩ

Specification
Electrical dataMechanical data
ParameterValueParameterValue
PowerSignalWorking Temp.-30℃~80℃
Rated Voltage0~440VAC/VDC0~440VAC/VDCOperating Humidity0~85% RH
Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDCContact MaterialGold-Gold
Lead WiresAWG16#TeflonAWG22#TeflonProtection gradeIP41
Lead LengthStandard 300mm
Dielectric Strength500VAC@50Hz,60s
Res Noise<0.01Ω



MSP230 Part# Explanation
Part#Signal or 10AProducts Level
MSP23012Common quality
MSP230912High-end quality
