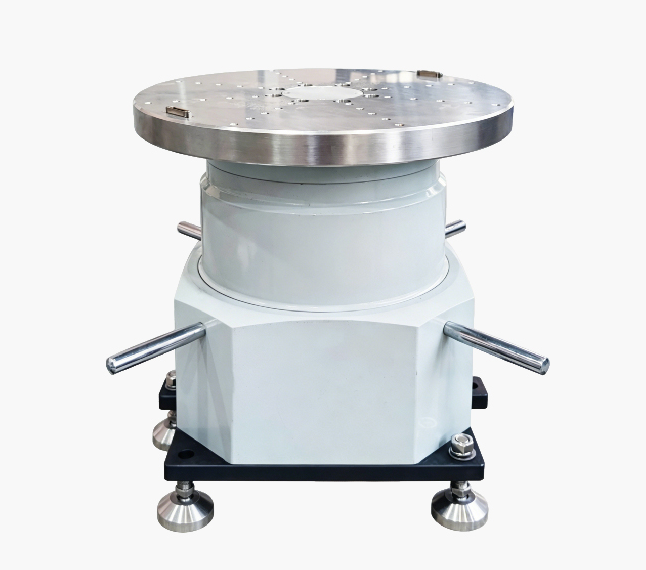

Model ID-360-1
This turntable consists of a vertical base unit, high-precision angular position encoders and a 30-circuit slip ring. It is designed for continuous, unlimited single-axis angular positioning and rotational speed testing of payloads.
Features
- Single-axis vertical construction for space-saving installation
- Unlimited continuous rotation with no angular travel restrictions
- Ultra-high angular position accuracy of ±12 arcseconds
- Wide angular velocity range: 0.001 to 720°/s
- Maximum angular acceleration up to 5000°/s²
- 30-circuit slip ring for multi-signal transmission
Applications
Suitable for aerospace and defence applications, designed for precision testing and calibration of inertial navigation systems, gyroscopes, accelerometers and other inertial components.
Specifications
| Parameter Categories | Parameter Items | Parameter Value |
|---|---|---|
| Accuracy Performance | Angular Position Accuracy | ≤ ±3″ |
| Angular Position Repeatability | ≤ ±2″ | |
| Velocity Flatness | ω < 1°/s: 2e-003 | |
| Dynamic Performance | Maximum Angular Velocity | ≥7200°/s |
| Maximum Angular Acceleration | 200°/s² | |
| Rotational Range | Azimuth: unlimited continuous 360° rotation | |
| Mechanical Specifications | Payload Capacity | 20 kg |
| Table Diameter | Φ360 mm |
