ME2501 (1000M baseT Ethernet)

1 channel 1000M Ethernet + 1~22 circuits Power/signal

ME2501,support 1 channel 1000M baseT ethernet slip rings, with through bore size 50mm(1.97"), overall diameter 120mm, are standard, off-the-shelf, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

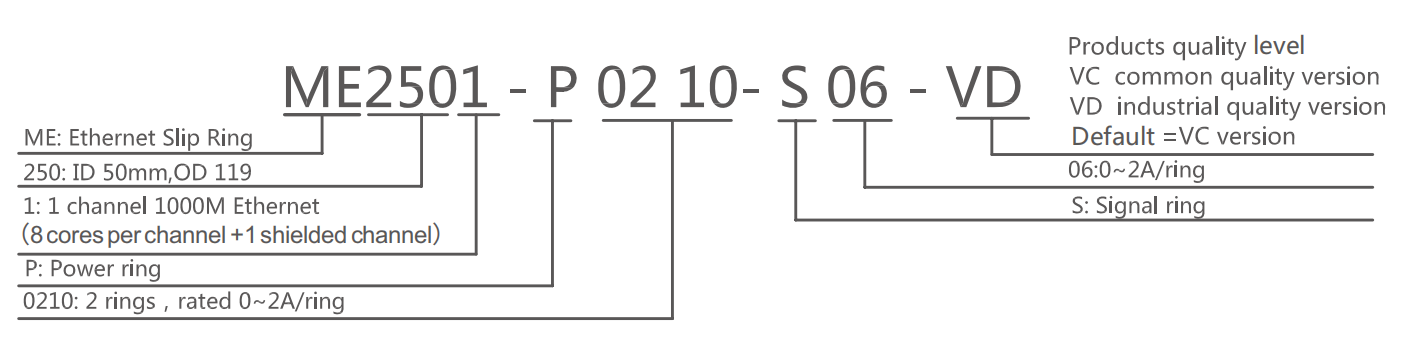

PART# Explanation:

ME2501-P0610-S06


  See how to works for ethernet slip rings?
  See life testing for MOFLON slip rings?
  See slip rings life testing software for MOFLON slip rings.
  See electrical noise curve of MOFLON slip rings.
  See typical moflon slip rings pictures.

part # OD*Length signal/2A 10A 20A 1000M baseT
ME2501-S04120mm*76mm4001
ME2501-P0410120mm*76mm0401
ME2501-P0420120mm*84mm0041
ME2501-S10120mm*100mm10001
ME2501-P0210-S08120mm*100mm8201
ME2501-P0610-S04120mm*100mm4601
ME2501-S16120mm*124mm16001
ME2501-P1610120mm*124mm0001
ME2501-P0410-S12120mm*124mm12401
ME2501-P0810-S08120mm*124mm8801
ME2501-S22120mm*148mm16001
ME2501-P0410-S18120mm*148mm18401
ME2501-P2210120mm*148mm02201
Ethernet Specifications
Ethernet1000M baseTEthernet connectorsRJ45
BER10E-11Insert loss2db
Power/signal Specifications
Circuits1~22(see table as above)CurrentSignal(2A),10A,Per Ring
Voltage0~600 VDC/VACMax speed1000RPM
Through bore size50.8mm(2")Overall diameter120mm(4.72")
Housing MaterialAluminium AlloyTorque0.15N.m for 6rings,+0.03N.m/6rings
Working lifedepends on working speedContact materialPrecious Metal:Gold-Gold
Electrical noise<5mOhmContact Resistance<2mOhm
Dielectric strength[email protected]Lead WireCAT6,AWG#16,#22
Insulation resistance[email protected]Lead Lengths250mm(Can be Longer on Request)
Operating Temp.-40°C to 80°CProtectionIP51
Mechanical vibratioMIL-SID-810EHumidity10% to 90% RH
MaterialsLead Free,RoHS compliantCE CertifiedYES

*Please note: 10A rings parallel can be used as multiple 10A large current.
For Example: 3 rings parallel = 1 wires 30A, please see order instructions
1)The operational life of the unit is dependent upon rotational speed, environment and temperature.
2)Lead Wire size: 2A/signal -> AWG22, 10A -> AWG16, 20A -> Awg14, colored code.
3)Electrical noise is dependent upon the rotating speed and current,voltage.
