moflon slip rings
MT180 Series

Through bore 180mm(7.09"),Overall Diameter: 292mm(11.5")

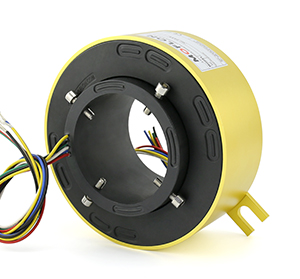

MT180 series are standard, off-the-shelf products, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.It can provides a 180mm(7.09") through-bore for routing of hydraulic or pneumatic lines or hydraulic or pneumatic rotating shaft installation, and a compact 292mm outside diameter, features long life, fiber brush contact technology for ultimate performance in many challenging applications.

Standard series PART# Explanation:

MT18018 -  06   12

  See how to works for through bore slip rings?
  See life testing for MOFLON slip rings?
  See slip rings life testing software for MOFLON slip rings.
  See electrical noise curve of MOFLON slip rings.
  See typical moflon slip rings pictures.


Specifications
Rings3~72(see table as below)CurrentSignal(2A) or 10A
Voltage600 VDC/VACMax speed150RPM
Through bore size180mm(7.09")Overall diameter292mm(11.5")
Housing MaterialAluminium AlloyTorque1N.m;+0.2N.m/6rings
Working lifedepends on working speedContact materialPrecious Metal:Gold-Gold
Electrical noise<10 mOhmContact Resistance<5 mOhm
Dielectric strength[email protected]Lead WireUL Teflon® Awg22,Awg16,Awg12
Insulation resistance[email protected]Lead Lengths300mm(12")
Operating Temp.-40°C to 80°CProtectionIP51
Mechanical vibratioMIL-SID-810EHumidity10% to 85% RH
MaterialsLead Free,RoHS compliantCE CertifiedYES


* Please note: 10A rings parallel can be used as multiple 10A current.
* For Example: 2 rings parallel could be used as 1 wires 20A
Download all parts#

MT18002(Total Rings=2, Length=77mm)
Parts#Power 10A(circuits)signal/2A(circuits)Parts#Power 10A(circuits)signal/2A(circuits)
MT18002-020020MT18002-000202
MT18003(Total Rings=3, Length=83mm)
Parts#Power 10A(circuits)signal/2A(circuits)Parts#Power 10A(circuits)signal/2A(circuits)
MT18003-030030MT18003-000303
MT18003-010212MT18003-020121
MT18006(Total Rings=6, Length=101mm)
Parts#Power 10A(circuits)signal/2A(circuits)Parts#Power 10A(circuits)signal/2A(circuits)
MT18006-060060MT18006-000606
MT18006-020424MT18006-040242
MT18012(Total Rings=12, Length=137mm)
Parts#Power 10A(circuits)signal/2A(circuits)Parts#Power 10A(circuits)signal/2A(circuits)
MT18012-1200120MT18012-0012012
MT18012-0210210MT18012-040848
MT18012-060666MT18012-080484
MT18012-1002102
MT18018(Total Rings=18, Length=173mm)
Parts#Power 10A(circuits)signal/2A(circuits)Parts#Power 10A(circuits)signal/2A(circuits)
MT18018-1800180MT18018-0018018
MT18018-0216216MT18018-0414414
MT18018-0612612MT18018-0810810
MT18018-1008108MT18018-1206126
MT18018-1404144MT18018-1602162
MT18024(Total Rings=24, Length=209mm)
Parts#Power 10A(circuits)signal/2A(circuits)Parts#Power 10A(circuits)signal/2A(circuits)
MT18024-2400240MT18024-0024024
MT18024-0618618MT18024-12121212
MT18024-1806186
MT18036(Total Rings=36, Length=281mm)
Parts#Power 10A(circuits)signal/2A(circuits)Parts#Power 10A(circuits)signal/2A(circuits)
MT18036-3600360MT18036-0036036
MT18036-0630630MT18036-12241224
MT18036-18181818MT18036-24122412
MT18036-3006306
MT18048(Total Rings=48, Length=353mm)
Parts#Power 10A(circuits)signal/2A(circuits)Parts#Power 10A(circuits)signal/2A(circuits)
MT18048-4800480MT18048-0048048
MT18048-0642642MT18048-12361236
MT18048-18301830MT18048-24242424
MT18048-30183018MT18048-36123612
MT18048-4206426
MT18056(Total Rings=56, Length=401mm)
Parts#Power 10A(circuits)signal/2A(circuits)Parts#Power 10A(circuits)signal/2A(circuits)
MT18056-5600560MT18056-0056056
MT18056-0650650MT18056-12441244
MT18056-18381838MT18056-24322432
MT18056-36203620MT18056-4808488
MT18072(Total Rings=72, Length=497mm)
Parts#Power 10A(circuits)signal/2A(circuits)Parts#Power 10A(circuits)signal/2A(circuits)
MT18072-7200720MT18072-0072072
MT18072-12601260MT18072-24482448
MT18072-30423042MT18072-36363636
MT18072-48244824MT18072-60126012
