MUSB2381 (USB slip rings)

1 channel USB2.0 + 1~20 circuits Power/signal

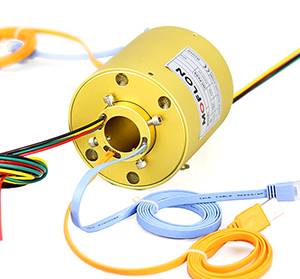

MUSB2381,support 1 channel USB2.0 slip rings, with through bore size 38.1mm(1.5"), overall diameter 99mm, are standard, off-the-shelf, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.

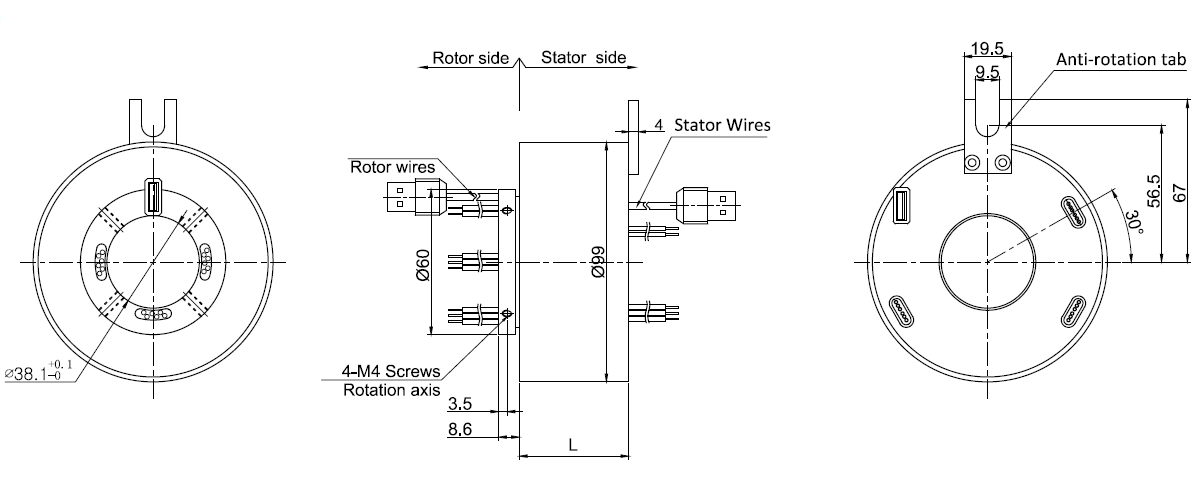

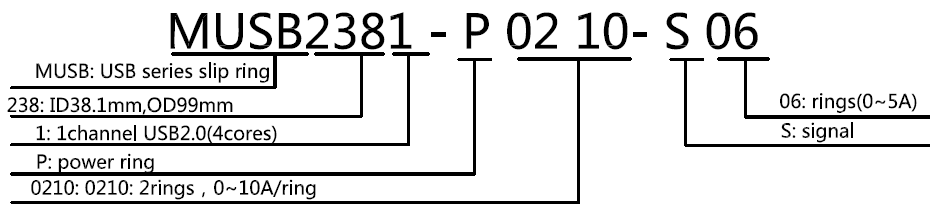

PART# Explanation:

MUSB2381-P0610-S06

part # OD*L signal/2A 10A 20A USB
MUSB2381-S0299mm*48mm2001
MUSB2381-P021099mm*48mm0201
MUSB2381-S0899mm*72mm8001
MUSB2381-P081099mm*72mm0801
MUSB2381-P0210-S0699mm*72mm6201
MUSB2381-P0410-S0499mm*72mm4401
MUSB2381-S1499mm*96mm14001
MUSB2381-P141099mm*96mm01401
MUSB2381-P0410-S1099mm*96mm10401
MUSB2381-P0810-S0699mm*96mm6801
MUSB2381-S2099mm*120mm20001
USB Specifications
USBUSB1.0,USB2.0connectorsrotor:male,stator:male
BER10E-11Insert loss2db
Power/signal Specifications
Circuits2~22(see table as above)CurrentSignal(2A) or 10A
Voltage600 VDC/VACMax speed500RPM
Through bore size38.1mm(1.5")Overall diameter99mm(3.9")
Housing MaterialAluminium AlloyTorque0.8N.m
Working lifedepends on working speedContact materialPrecious Metal:Gold-Gold
Electrical noise<10 milliohmsContact Resistance<100mOhm(AWG16#,300mm)
Dielectric strength[email protected]Lead WireUL Teflon®
Insulation resistance[email protected]Lead Lengths250mm
Operating Temp.-40°C to 80°CProtectionIP51
Mechanical vibratioMIL-SID-810EHumidity10% to 90% RH
MaterialsLead Free,RoHS compliantCE CertifiedYES

*Please note: 10A rings parallel can be used as multiple 10A large current.
For Example: 3 rings parallel = 1 wires 30A, please see order instructions
1)The operational life of the unit is dependent upon rotational speed, environment and temperature.
2)Lead Wire size: 2A/signal -> AWG22, 10A -> AWG16, 20A -> Awg14, colored code.
3)Electrical noise is dependent upon the rotating speed and current,voltage.
