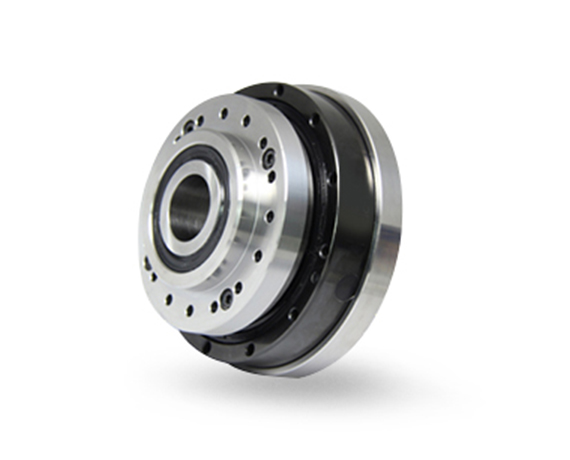

KMHG-E Series Harmonic Gearbox

The HMG-E series flexspline adopts a hollow inverted U-shaped standard structure. The wave generator cam features a large diameter hollow shaft hole in its center. The reducer is internally designed with a support bearing and a fully sealed structure, making it easy to install and highly suitable for applications where wires need to be routed through the center of the reducer.

Product features
Large diameter & hollow shaft
Compact and concise design
No backlash
Input and output are coaxial
Excellent positioning accuracy and rotational accuracy
