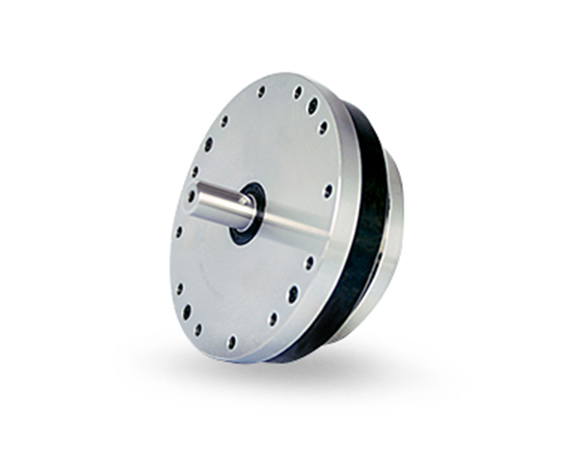

KMHG-F Series Harmonic Gearbox

The HMHG-F series flexspline adopts a hollow flanged standard structure, with a wave generator cam integrated with the input shaft. The reducer features an internal support bearing and a fully sealed design, enabling easy installation. It is particularly suitable for applications requiring the mounting of bevel gears or synchronous belt drives on the input side.

Product features
Capable of handling multiple input formats
Compact and concise design
No backlash
Input and output on the same axis
Excellent positioning accuracy and rotation accuracy
