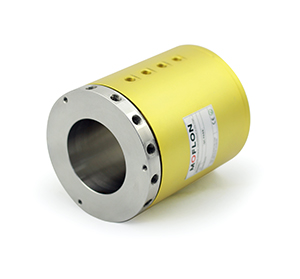

MJ3020 Series
MJ seires Through Bore Rotary Union<
MJ3020 slip rings
  • MJ3020 have two port size G1/8、G1/4 ,It can transfer media as compressed aird, vacuum, hydrogen, nitrogen, steam, cooling water, hot water, oil and so on.

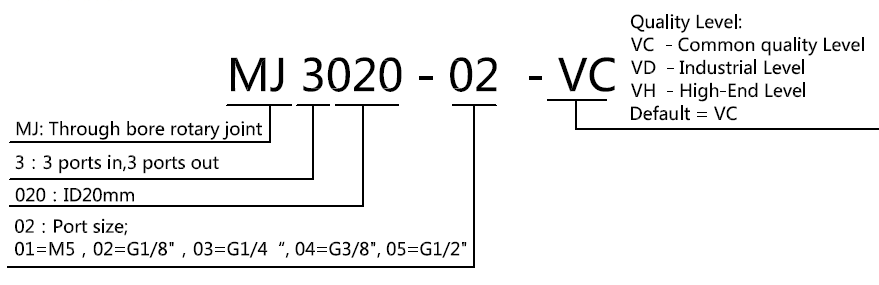

Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeSealing Element
VC100RPM10Million Revs.Common Seals
VD300RPM30Million Revs.High-Quality Seals

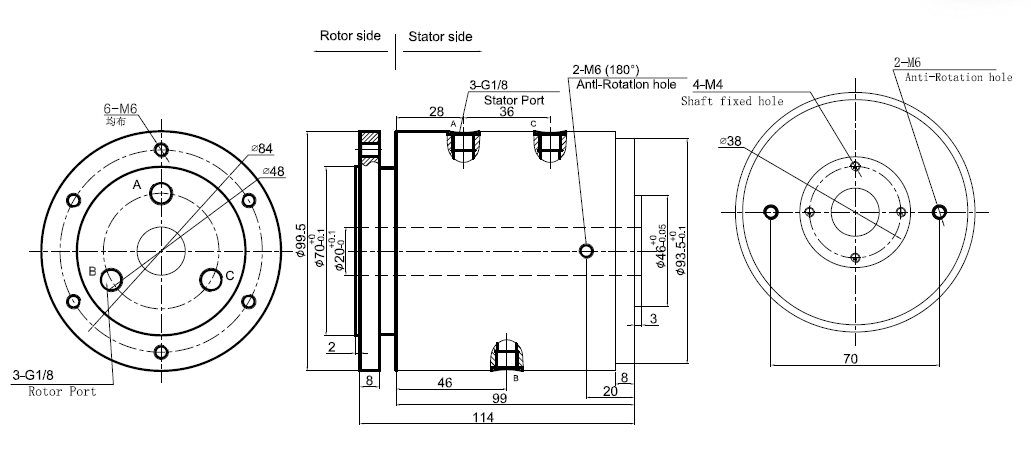

Rotary Union Specifications
Passage3 in 3 out
Max.10MPa,Vacuum 0.01torr
TorqueSee Part#List

MJ3020 Parts# List
Part#Connection sizeTorque(N.M)Connection sizeID
MJ3020-023 in 3 out5G1/820mm
MJ3020-033 in 3 out6G1/420mm
