Slip Ring Rotor - Slip Ring Induction Motor

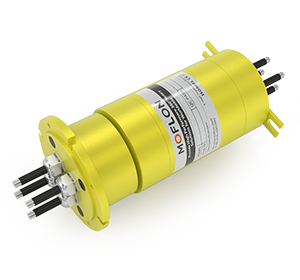

• The NZ series rotor flange conductive waterproof slip rings are a general term for a series of waterproof slip rings with connecting flanges on the rotor part. They are solid slip rings suitable for installation on the flange end face. Due to the absence of through holes in the middle, they can achieve more circuits and higher current under the premise of the same outer diameter. They are commonly used for rotor flange end face installation, with rotor leads exiting from the end face. Due to the sufficient internal space, these products are convenient for internal wiring and special shielding module design, making them more stable and reliable. Usually, these products are used for customizing various sensitive signals or encoder signals.

Download MZ Catalog

Part#	Product	OD(mm)	Circuit Number(ring)	Power/each ring(A)	Voltage(VDC/VAC)	Details
NZ056		56/59.5	1~48	Signal(2A)~10A	0~440	VIEW>>
NZ086		86/90	1~60	Signal(2A)~10A	0~690	VIEW>>

Havn't found standard size to fit my application?

1) View "Customized Solutions", you can find much more specialized solutions.

2) Customize your dimension and Contact us : technical@moflon.com
