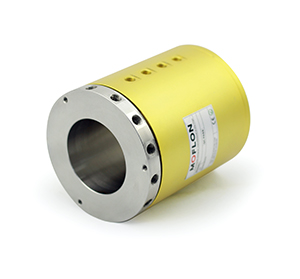

MJ4030 Series
MJ seires Through Bore Rotary Union<
MJ4030 slip rings
  • MJ4030 have two port size G1/8、G1/4 ,It can transfer media as compressed aird, vacuum, hydrogen, nitrogen, steam, cooling water, hot water, oil and so on.
Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax sppedWorking LifeSealing Element
VC100RPM10Million Revs.Common Seals
VD300RPM30Million Revs.High-Quality Seals

Specification
Rotary Union Specifications
ParameterValue
Passage4 in 4 out
Max.10MPa,Vacuum 0.01torr
TorqueSee Part#List





MJ4030 Parts# List
Part#Connection sizeTorque(N.M)Connection sizeID
MJ4030-024 in 4 out6G1/830mm
MJ4030-034 in 4 out7G1/430mm
