ProductsSlip Rings NZ-Rotor Flange Waterproof Conductive Slip Rings NZ056 Series

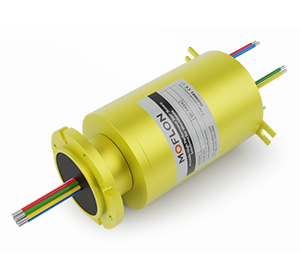

NZ056 Series

OD 56mm, 1~48 rings

The NZ056 series rotor flange waterproof conductive slip rings refer to a series of waterproof slip rings with a rotor part of 56mm outer diameter and a connecting flange. These are solid slip rings suitable for installation on the flange end face.

Download NZ056 Catalog Download 3D Model

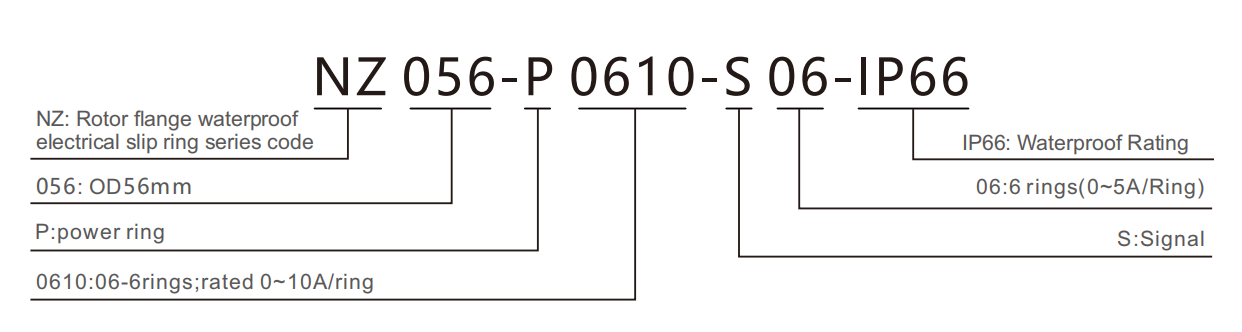

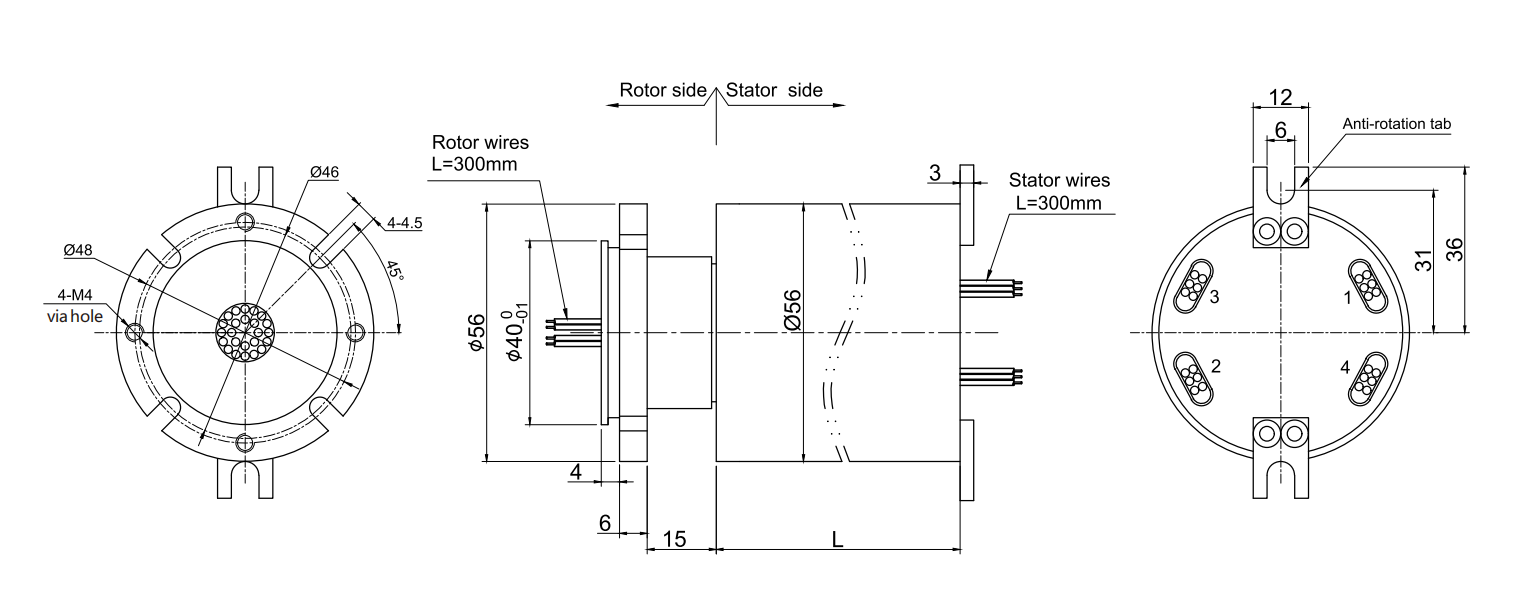

Standard series PART# Explanation

Specification
Mechanical data		Electrical data
Parameter	Value	Parameter	Value
Working Life	See Prod Quality Level		Power	Signal
Rotating Speed	100RPM	Rated Voltage	0~440VAC/VDC	0~440VAC/VDC
Working Temp.	-30℃~80℃/-45℃~80℃	Insulation Res	≥1000MΩ/500VDC	≥1000MΩ/500VDC
Operating Humidity	0~85%RH/0~97%RH	Lead Wires	1mm² Cable	1mm² Cable
Contact Material	See Prod Quality Level	Lead Length	Standard 300mm
Housing Material	Aluminum alloy/ Aluminum alloy + Stainless steel	Dielectric Strength	500VAC@50Hz，60s
Torque	0.1N.m;+0.03/6ring	Res Noise	<0.01Ω
Protection grade	IP66/IP68

NZ056 series rotor flange waterproof conductive Slip Rings part list
Part#	10A	Signal/5A	Length(mm)	Part#	10A	Signal/5A	Length(mm)
NZ056-S06-IP66	0	6	53	NZ056-S06-IP68	0	6	76
NZ056-P0610-IP66	6	0	53	NZ056-P0610-IP68	6	0	76
NZ056-S12-IP66	0	12	69.8	NZ056-S12-IP68	0	12	92.8
NZ056-P0610-S06-IP66	6	6	69.8	NZ056-P0610-S06-IP68	6	6	92.8
NZ056-P1210-IP66	12	0	69.8	NZ056-P1210-IP68	12	0	92.8
NZ056-S18-IP66	0	18	86.6	NZ056-S18-IP68	0	18	109.6
NZ056-P0610-S12-IP66	6	12	86.6	NZ056-P0610-S12-IP68	6	12	109.6
NZ056-P01210-S06-IP66	12	6	86.6	NZ056-P01210-S06-IP68	12	6	109.6
NZ056-P1810-IP66	18	0	86.6	NZ056-P1810-IP68	18	0	109.6
NZ056-S24-IP66	0	24	103.4	NZ056-S24-IP68	0	24	126.4
NZ056-P0610-S18-IP66	6	18	103.4	NZ056-P0610-S18-IP68	6	18	126.4
NZ056-P1210-S12-IP66	12	12	103.4	NZ056-P1210-S12-IP68	12	12	126.4
NZ056-P1810-S06-IP66	18	6	103.4	NZ056-P1810-S06-IP68	18	6	126.4
NZ056-P2410-IP66	24	0	103.4	NZ056-P2410-IP68	24	0	126.4
NZ056-S30-IP66	0	30	120.2	NZ056-S30-IP68	0	30	143.2
NZ056-P0610-S24-IP66	6	24	120.2	NZ056-P0610-S24-IP68	6	24	143.2
NZ056-P1210-S18-IP66	12	18	120.2	NZ056-P1210-S18-IP68	12	18	143.2
NZ056-P1810-S12-IP66	18	12	120.2	NZ056-P1810-S12-IP68	18	12	143.2
NZ056-P2410-S06-IP66	24	6	120.2	NZ056-P2410-S06-IP68	24	6	143.2
NZ056-P3010-IP66	30	0	120.2	NZ056-P3010-IP68	30	0	143.2
NZ056-S36-IP66	0	36	140	NZ056-S36-IP68	0	36	163
NZ056-P0610-S30-IP66	6	30	140	NZ056-P0610-S30-IP68	6	30	163
NZ056-P1210-S24-IP66	12	24	140	NZ056-P1210-S24-IP68	12	24	163
NZ056-P1810-S18-IP66	18	18	140	NZ056-P1810-S18-IP68	18	18	163
NZ056-P2410-S12-IP66	24	12	140	NZ056-P2410-S12-IP68	24	12	163
NZ056-P3010-S06-IP66	30	6	140	NZ056-P3010-S06-IP68	30	6	163
NZ056-P3610-IP66	36	0	140	NZ056-P3610-IP68	36	0	163
NZ056-S42-IP66	0	42	156.8	NZ056-S42-IP68	0	42	179.8
NZ056-P0610-S36-IP66	6	36	156.8	NZ056-P0610-S36-IP68	6	36	179.8
NZ056-P1210-S30-IP66	12	30	156.8	NZ056-P1210-S30-IP68	12	30	179.8
NZ056-P1810-S24-IP66	18	24	156.8	NZ056-P1810-S24-IP68	18	24	179.8
NZ056-P2410-S18-IP66	24	18	156.8	NZ056-P2410-S18-IP68	24	18	179.8
NZ056-P3010-S12-IP66	30	12	156.8	NZ056-P3010-S12-IP68	30	12	179.8
NZ056-P3610-S06-IP66	36	6	156.8	NZ056-P3610-S06-IP68	36	6	179.8
NZ056-P4210-IP66	42	0	156.8	NZ056-P4210-IP68	42	0	179.8
NZ056-S48-IP66	0	48	173.6	NZ056-S48-IP68	0	48	196.6
NZ056-P0610-S42-IP66	6	42	173.6	NZ056-P0610-S42-IP68	6	42	196.6
NZ056-P1210-S36-IP66	12	36	173.6	NZ056-P1210-S36-IP68	12	36	196.6
NZ056-P1810-S30-IP66	18	30	173.6	NZ056-P1810-S30-IP68	18	30	196.6
NZ056-P2410-S24-IP66	24	24	173.6	NZ056-P2410-S24-IP68	24	24	196.6
NZ056-P3010-S18-IP66	30	18	173.6	NZ056-P3010-S18-IP68	30	18	196.6
NZ056-P3610-S12-IP66	36	12	173.6	NZ056-P3610-S12-IP68	36	12	196.6
NZ056-P4210-S06-IP66	42	6	173.6	NZ056-P4210-S06-IP68	42	6	196.6
NZ056-P4810-IP66	48	0	173.6	NZ056-P4810-IP68	48	0	196.6

If you have special requirements, please contact customer service.
