MGP8 Series
8 Passages General Purpose Rotary Unions
MGP8 slip rings
  • 8 Passage General Purpose Rotary Unions.
  • MGP8 general purpose rotary unions could connect with M5、G1/8、G1/4、G3/8、G1/2 ,also can combine with power wire, signal wire ,Ethernet, USB, Industrial BUS, control line, solenoid valve, sense line, etc. It’s Standard Flange installation, hollow shaft can be customized as well.
    Media Types: Air/Gas,Vacuum,Chemical,DI/Tap Water,Oil,etc.

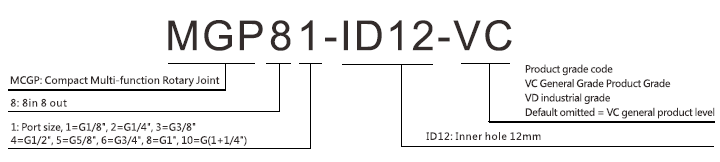

Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeSealing Element
VC100RPM6Million Revs.Domestic famous brand seals
VD300RPM20Million Revs.Imported seals

Specification
Mechanical dataRotary Union Specifications
ParameterValueParameterValue
Working lifeSee Prod Level TablePassages8 Passages
Rated speedSee Prod Level TableMax Pressure50MPa (customizable high pressure),vacuum 30HG
Operating temp-30℃~80℃Media TypeAir,vacuum,hydraulic oil,water,hot water,coolant,steam,etc
Working humidity0~85% RHTorqueDepends on connection size.
SealsSee Prod Level Table
Shell materialAluminum alloy/steel
Protection GradeIP51



MGP8 series Parts# List
Model NoPassagesPort sizeInner hole sizePressure
MGP818 in 8 outG1/8"N/A0-50MPa
MGP828 in 8 outG1/4"N/A0-50MPa
MGP838 in 8 outG3/8"N/A0-50MPa
MGP848 in 8 outG1/2"N/A0-50MPa

MGP8 Series Drawings
