MK13A Series
1 Passages G3/8" Gas/Vacuum
1 Passage Pneumatic Rotary Unions
  • MK13A series is single channel pneumatic rotary joint, 1 inlet and 1 outlet, it can transmit compressed air, vacuum, G3/8".
  • compact structure, light weight, corrosion resistant, stainless steel shaft and aluminum shell.
    All MK single channel series rotary joints are equipped with male thread shaft and female thread housing for easy installation.
Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeSealing Element
VC100RPM6Million Revs.Domestic famous brand seals
VD300RPM20Million Revs.Imported seals

Mechanical dataRotary Union Specifications
Working lifeSee Prod Level TablePassages1 Passages
Rated speedSee Prod Level TableMax Pressure1MPa,Vacuum
Operating temp-30℃~80℃Media TypeAir,vacuum
Working humidity0~85% RHTorqueDepends on connection size.
SealsSee Prod Level Table
Shell materialAluminum alloy/steel
Protection GradeIP51

MK13A series Parts# List
Part# PassagesPort sizePressure
MK13A1 in 1 outG3/8"1MPa, Vacuum

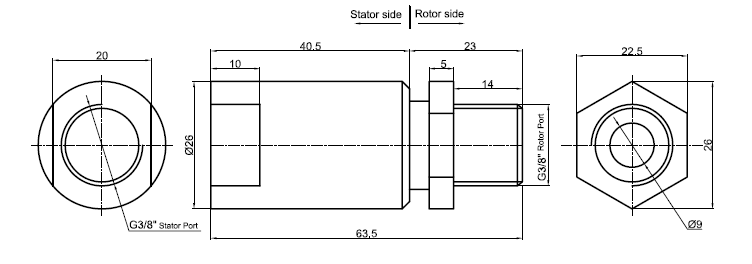

MK13A Series Drawings
