MAPH300S Series
3 Inlet 3 Outlet Rotary Unions + 0~96 Circuits
MAPH300S slip rings
  • MAPH300S series is 3 inlet 3 outlet pneumatic/hydraulic rotary unions (optional + electrical slip rings) could connect with M5、G1/8、G1/4、G3/8、G1/2 channel ,also can combine with 2~96 power wires,signal wires ,Ethernet, USB, Industrial BUS, control line, solenoid valve, sense line,etc. It's Standard Flange installation, hollow shaft can be customized as well.
    Media Types: Air/Gas,Vacuum,Chemical,DI/Tap Water,Oil,etc.
Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeSealing Element
VC100RPM10Million Revs.Common Seals
VD300RPM30Million Revs.High-Quality Seals

Specification
Rotary Union SpecificationsMechanical data
ParameterValueParameterValue
Passage3 in 3 outWorking LifeSee Prod Quality Level
Max.10MPa,Vacuum 0.01torrRotating SpeedSee Prod Quality Level
TorqueConsult technician about detailsWorking Temp.-30℃~80℃
Electrical dataOperating Humidity0~85% RH
ParameterValueContact MaterialPrecious Metal
PowerSignalHousing MaterialAluminium Alloy
Rated Voltage0~240VAC/VDC0~240VAC/VDCProtection gradeIP51
Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Lead WiresAWG28#TeflonAWG28#Teflon
Lead LengthStandard 300mm
Dielectric Strength500VAC@50Hz,60s
Res Noise<0.01Ω



MAPH300S-01 (3 passages, M5)


MAPH300S-02 (3 passages, G1/8")

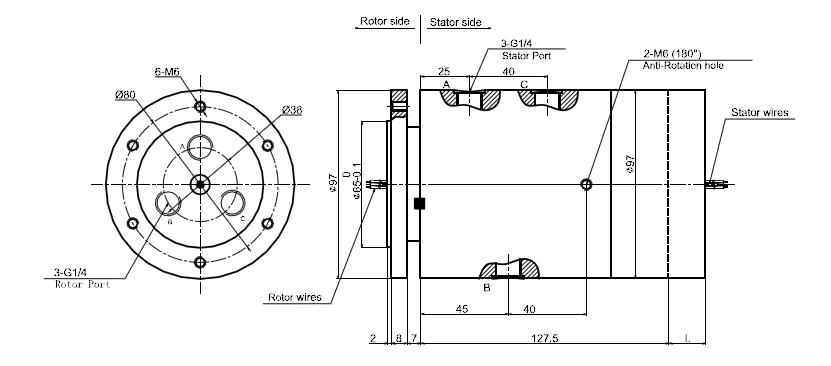

MAPH300S-03 (3 passages, G1/4")


MAPH300S-04 (3 passages, G3/8")


MAPH300S-05 (3 passages, G1/2")


MAPH300S-XX series
1)XX=01,Connection size=M5, Tube size3~6mm 2)XX=02,Connection size=G1/8,Tube size3~10mm
3)XX=03,Connection size=G1/4,Tube size3~12mm 4)XX=04,Connection size=G3/8,Tube size3~16mm
5)XX=05,Connection size=G1/2,Tube size3~20mm
Part#Passages10ASignal/5ALength(mm)
MAPH300S-XX-S063 in 3 out0619
MAPH300S-XX-S123 in 3 out01226
MAPH300S-XX-S183 in 3 out01833
MAPH300S-XX-S243 in 3 out02443.6
MAPH300S-XX-S363 in 3 out03657.3
MAPH300S-XX-S563 in 3 out05685.7

10A and Signal(5A) can be combined in any way as you need,Max.Ring:96 rings,Can be customized based on standard slip rings,Please contact us.
