MAPH400W Series
4 Inlet 4 Outlet Fuild/Gas + 0~96 Circuits

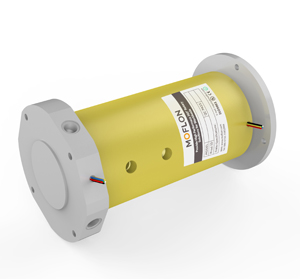

MAPH400W slip rings
  • MAPH400W series is 4 passages hydraulic rotating union(hydraulic rotary joints) which can get fuild/gas from stationary part to rotating part when 360°continually rotating
  • Could connect with M5、G1/8、G1/4、G3/8、G1/2 channel ,also can combine with power wire,signal wire ,Ethernet, USB, industrial-BUS, control line, solenoid valve, sense line,etc. It’s standard flange installation, hollow shaft can be customized as well.
    Media Types: Fuild,Air/Gas,Vacuum,Chemical,DI/Tap Water,Oil,etc.

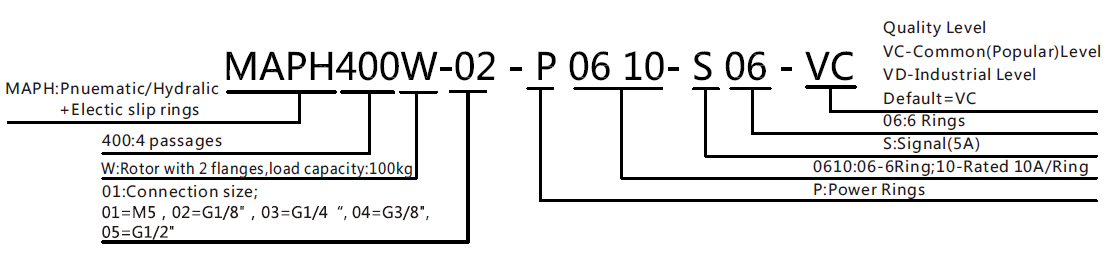

Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeSealing Element
VC100RPM10Million Revs.Common Seals
VD300RPM30Million Revs.High-Quality Seals

Rotary Union SpecificationsMechanical data
Passage4 in 4 outWorking LifeSee Prod Quality Level
Max.10MPa,Vacuum 0.01torrRotating SpeedSee Prod Quality Level
TorqueConsult technician about detailsWorking Temp.-30℃~80℃
Electrical dataOperating Humidity0~85% RH
ParameterValueContact MaterialPrecious Metal
PowerSignalHousing MaterialAluminium Alloy
Rated Voltage0~440VAC/VDC0~440VAC/VDCProtection gradeIP51
Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Lead WiresAWG17#TeflonAWG22#Teflon
Lead LengthStandard 300mm
Dielectric Strength500VAC@50Hz,60s
Res Noise<0.01Ω

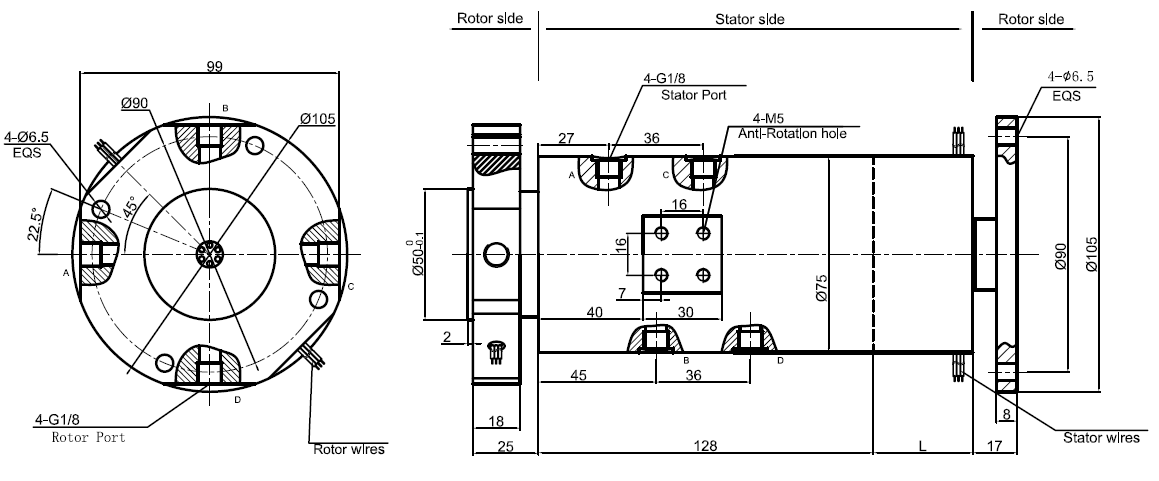

MAPH400W-02 (4 passages G1/8")

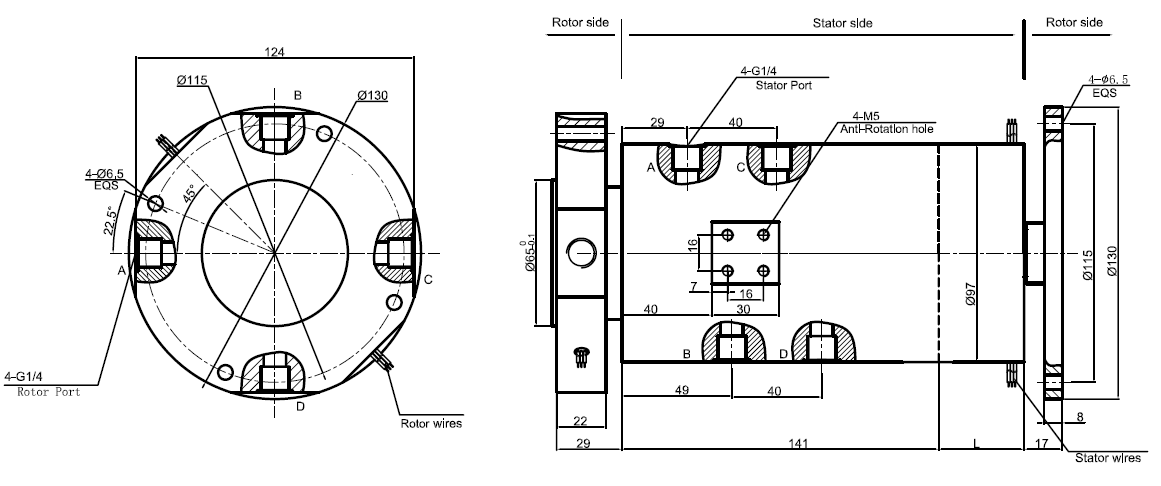

MAPH400W-03 (4 passages G1/4")

MAPH400W-XX Pnuematic/Hydraulic Hybrid Slip Ring
1)XX=01,Connection size=M5, Pipe size3~6mm 2)XX=02,Connection size=G1/8,Pipe size3~10mm
3)XX=03,Connection size=G1/4,Pipe size3~12mm 4)XX=04,Connection size=G3/8,Pipe size3~16mm
5)XX=05,Connection size=G1/2,Pipe size3~20mm
MAPH400W-XX-S064 in 4 out0638MAPH400W-XX-P0810-S104 in 4 out81071.6
MAPH400W-XX-P0210-S044 in 4 out2438MAPH400W-XX-P1010-S084 in 4 out10871.6
MAPH400W-XX-P0410-S024 in 4 out4238MAPH400W-XX-P1210-S064 in 4 out12671.6
MAPH400W-XX-P06104 in 4 out6038MAPH400W-XX-P1410-S044 in 4 out14471.6
MAPH400W-XX-S124 in 4 out12054.8MAPH400W-XX-P1610-S024 in 4 out16271.6
MAPH400W-XX-P0210-S104 in 4 out21054.8MAPH400W-XX-S244 in 4 out02488.4
MAPH400W-XX-P0310-S094 in 4 out3954.8MAPH400W-XX-P0410-S204 in 4 out42088.4
MAPH400W-XX-P0610-S064 in 4 out6654.8MAPH400W-XX-P0610-S184 in 4 out61888.4
MAPH400W-XX-P0810-S044 in 4 out8454.8MAPH400W-XX-P1210-S124 in 4 out121288.4
MAPH400W-XX-P1010-S024 in 4 out10254.8MAPH400W-XX-S304 in 4 out030105.2
MAPH400W-XX-P12104 in 4 out12054.8MAPH400W-XX-P0610-S244 in 4 out624105.2
MAPH400W-XX-S184 in 4 out01871.6MAPH400W-XX-S364 in 4 out036125
MAPH400W-XX-P0210-S164 in 4 out21671.6MAPH400W-XX-S424 in 4 out042141.8
MAPH400W-XX-P0410-S144 in 4 out41471.6MAPH400W-XX-S484 in 4 out048158.6
MAPH400W-XX-P0610-S124 in 4 out61271.6

10A and Signal(5A) can be combined in any way as you need,Max.Ring:96 rings,Can be customized based on standard slip rings,Please contact us.
