MAPH400S Series
4 Inlet 4 Outlet Fuild/Gas + 0~96 Circuits)
MAPH400S slip rings
  • MAPH400S series is 4 passages hydraulic rotating union(hydraulic rotary joints) which can get fuild/gas from stationary part to rotating part when 360°continually rotating
  • Could connect with M5、G1/8、G1/4、G3/8、G1/2 channel ,also can combine with power wire,signal wire ,Ethernet, USB, industrial-BUS, control line, solenoid valve, sense line,etc. It’s standard flange installation, hollow shaft can be customized as well.
    Media Types: Fuild,Air/Gas,Vacuum,Chemical,DI/Tap Water,Oil,etc.

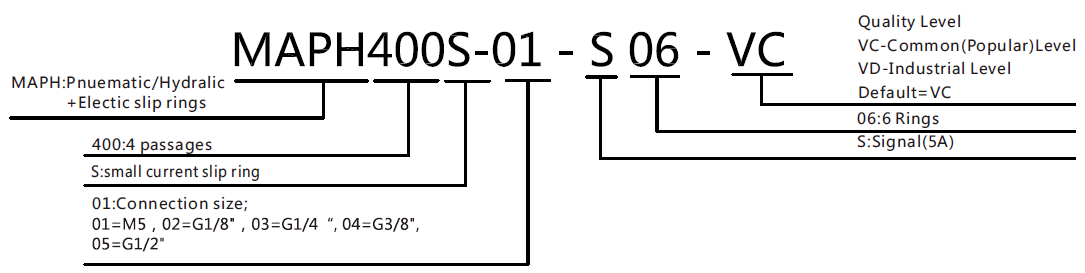

Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax sppedWorking LifeSealing Element
VC100RPM10Million Revs.Common Seals
VD300RPM30Million Revs.High-Quality Seals

Specification
Rotary Union SpecificationsMechanical data
ParameterValueParameterValue
Passage4 in 4 outWorking LifeSee Prod Quality Level
Max.10MPa,Vacuum 0.01torrRotating SpeedSee Prod Quality Level
TorqueConsult technician about detailsWorking Temp.-30℃~80℃
Electrical dataOperating Humidity0~85% RH
ParameterValueContact MaterialPrecious Metal
PowerSignalHousing MaterialAluminium Alloy
Rated Voltage0~240VAC/VDC0~240VAC/VDCProtection gradeIP51
Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Lead WiresAWG28#TeflonAWG28#Teflon
Lead LengthStandard 300mm
Dielectric Strength500VAC@50Hz,60s
Res Noise<0.01Ω



MAPH400S-01 (4 passages M5)


MAPH400S-02 (4 passages G1/8")


MAPH400S-03 (4 passages G1/4")


MAPH400S-04 (4 passages G3/8")


MAPH400S-05 (4 passages G1/2")


MAPH400S-XX Pnuematic/Hydraulic Hybrid Slip Ring
1)XX=01,Connection size=M5, Pipe size3~6mm 2)XX=02,Connection size=G1/8,Pipe size3~10mm
3)XX=03,Connection size=G1/4,Pipe size3~12mm 4)XX=04,Connection size=G3/8,Pipe size3~16mm
5)XX=05,Connection size=G1/2,Pipe size3~20mm
Part#Pnuematic/Hydraulic Passage10ASignal/5ALength(mm)
MAPH400S-XX-S064 in 4 out0619
MAPH400S-XX-S124 in 4 out01226
MAPH400S-XX-S184 in 4 out01833
MAPH400S-XX-S244 in 4 out02443.6
MAPH400S-XX-S364 in 4 out03657.3
MAPH400S-XX-S564 in 4 out05685.7

10A and Signal(5A) can be combined in any way as you need,Max.Ring:96 rings,Can be customized based on standard slip rings,Please contact us.
