MAPH300F Series
3 Inlet 3 Outlet Rotary Unions + 0~96 Circuits
MAPH300F slip rings
  • MAPH300F series is 3 inlet 3 outlet pneumatic/hydraulic rotary unions (optional + electrical slip rings) could connect with M5、G1/8、G1/4、G3/8、G1/2 channel ,also can combine with 2~96 power wires,signal wires ,Ethernet, USB, Industrial BUS, control line, solenoid valve, sense line,etc. It's Standard Flange installation, hollow shaft can be customized as well.
    Media Types: Air/Gas,Vacuum,Chemical,DI/Tap Water,Oil,etc.
Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeSealing Element
VC100RPM10Million Revs.Common Seals
VD300RPM30Million Revs.High-Quality Seals

Specification
Rotary Union SpecificationsMechanical data
ParameterValueParameterValue
Passage3 in 3 outWorking LifeSee Prod Quality Level
Max.10MPa,Vacuum 0.01torrRotating SpeedSee Prod Quality Level
TorqueConsult technician about detailsWorking Temp.-30℃~80℃
Electrical dataOperating Humidity0~85% RH
ParameterValueContact MaterialPrecious Metal
PowerSignalHousing MaterialAluminium Alloy
Rated Voltage0~440VAC/VDC0~440VAC/VDCProtection gradeIP51
Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Lead WiresAWG17#TeflonAWG22#Teflon
Lead LengthStandard 300mm
Dielectric Strength500VAC@50Hz,60s
Res Noise<0.01Ω



MAPH300F-01 (3 passages, M5)


MAPH300F-02 (3 passages, G1/8")


MAPH300F-03 (3 passages, G1/4")


MAPH300F-04 (3 passages, G3/8")

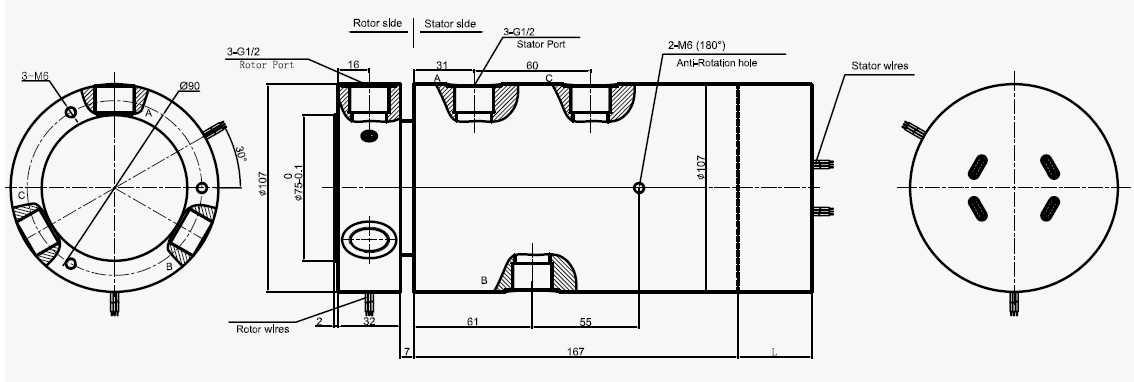

MAPH300F-05 (3 passages, G1/2")


MAPH300F-XX series
1)XX=01,Connection size=M5, Tube size 3~6mm 2)XX=02,Connection size=G1/8,Tube size3~10mm
3)XX=03,Connection size=G1/4,Tube size3~12mm 4)XX=04,Connection size=G3/8,Tube size3~16mm
5)XX=05,Connection size=G1/2,Tube size3~20mm
Part#Passages10ASignal/5ALength(mm)Part#Passages10ASignal/5ALength(mm)
MAPH300F-XX-S063 in 3 out0638MAPH300F-XX-P0810-S103 in 3 out81071.6
MAPH300F-XX-P0210-S043 in 3 out2438MAPH300F-XX-P1010-S083 in 3 out10871.6
MAPH300F-XX-P0410-S023 in 3 out4238MAPH300F-XX-P1210-S063 in 3 out12671.6
MAPH300F-XX-P06103 in 3 out6038MAPH300F-XX-P1410-S043 in 3 out14471.6
MAPH300F-XX-S123 in 3 out12054.8MAPH300F-XX-P1610-S023 in 3 out16271.6
MAPH300F-XX-P0210-S103 in 3 out21054.8MAPH300F-XX-S243 in 3 out02488.4
MAPH300F-XX-P0310-S093 in 3 out3954.8MAPH300F-XX-P0410-S203 in 3 out42088.4
MAPH300F-XX-P0610-S063 in 3 out6654.8MAPH300F-XX-P0610-S183 in 3 out61888.4
MAPH300F-XX-P0810-S043 in 3 out8454.8MAPH300F-XX-P1210-S123 in 3 out121288.4
MAPH300F-XX-P1010-S023 in 3 out10254.8MAPH300F-XX-S303 in 3 out030105.2
MAPH300F-XX-P12103 in 3 out12054.8MAPH300F-XX-P0610-S243 in 3 out624105.2
MAPH300F-XX-S183 in 3 out01871.6MAPH300F-XX-S363 in 3 out036125
MAPH300F-XX-P0210-S163 in 3 out21671.6MAPH300F-XX-S423 in 3 out042141.8
MAPH300F-XX-P0410-S143 in 3 out41471.6MAPH300F-XX-S483 in 3 out048158.6
MAPH300F-XX-P0610-S123 in 3 out61271.6

10A and Signal(5A) can be combined in any way as you need,Max.Ring:96 rings,Can be customized based on standard slip rings,Please contact us.
