MK61 series Gas Rotary Unions(+Electric Slip Rings)

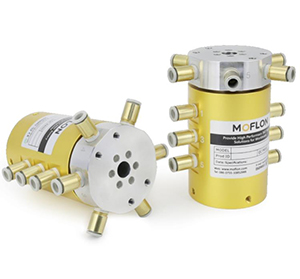

MK61 Series

6 Passages G1/8" Gas/Vacuum + 0~96 Circuits

MK61 series is 6 passages pneumatic Rotary Union(Can combine electric wires), with connection size G1/8", compact size, light weight, low torqure, Also optional for transmitting power line, signal line, industrial bus, control line, Electromagnetic valve, induction line, etc.; Standard installation is flange mounting.
Media Types: Compress Air/Gas, vacuum;Can combine 2~96 circuits(2A),can also use pneumatic part,without circuits.
Media Types: compressed Air/Gas, vacuum, etc.

Download MK61 Catalog Download 3D Model

Specification
Rotary Union Specifications			Mechanical data
Parameter	Value		Parameter	Value
Passage	6 in 6 out, G1/8"		Working Life	Over 10 Million Revs
Max.	1MPa(high pressure can be customized), Vacuum 0.01torr		Rotating Speed	300RPM
Torque	Related to the connection size, please see the product selection table		Working Temp.	-30℃~80℃
Electrical data			Operating Humidity	0~85% RH
Parameter	Value		Contact Material	See Prod Quality Level
	Power	Signal	Housing Material	Aluminium Alloy
Rated Voltage	0~240VAC/VDC	0~240VAC/VDC	Protection grade	IP51
Insulation Res	≥500MΩ/500VDC	≥500MΩ/500VDC
Lead Wires	AWG17#Teflon	AWG22#Teflon
Lead Length	Standard 300mm
Dielectric Strength	500VAC@50Hz，60s
Res Noise	＜0.01Ω

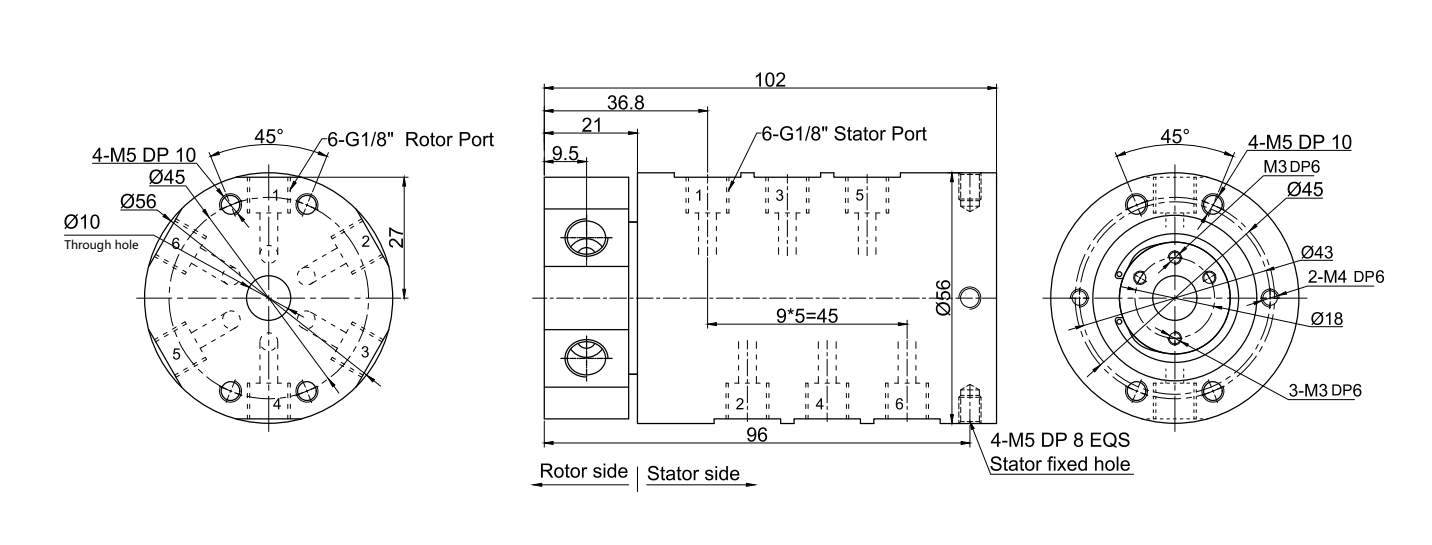

MK61 (rotary union only for pneumatic) drawing (6 in 6 out, connection size G1/8")

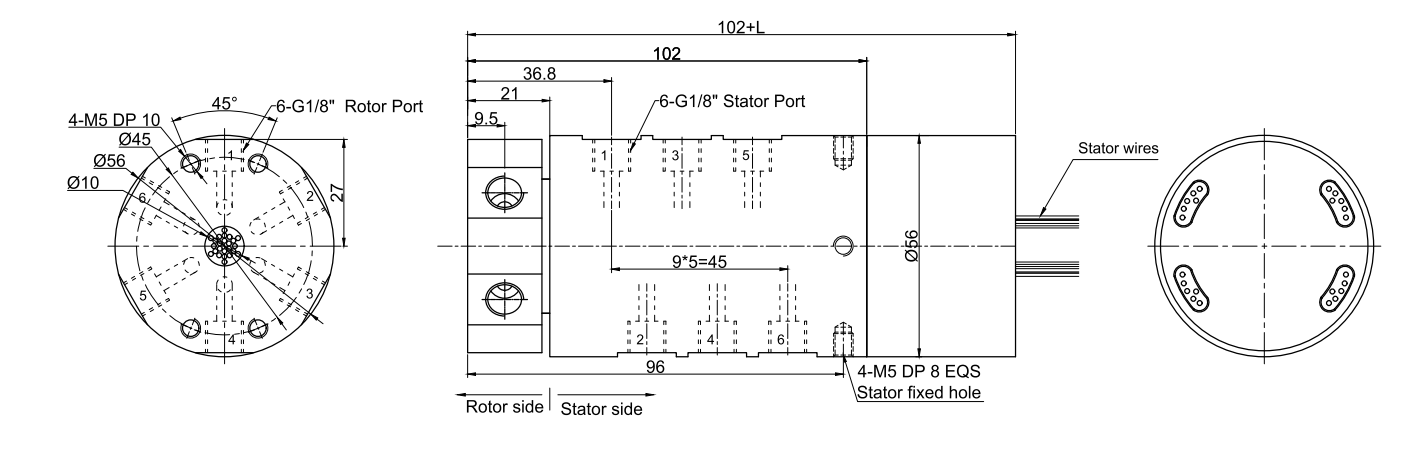

MK61S-S06 (S12、S18、S24、S36)drawing 6 in 6 out, connection size G1/8"+06~36 wires x signal(2A)

MK61S-S12/MK61S-S18/MK61S-S24/MK61S-S36 Parts# List
Model	Passages	Connection Size	Tube Size	Signal(2A)	L(mm)
MK61S-S06	6	G1/8"	6~8mm	6	15.5
MK61S-S12	6	G1/8"	6~8mm	12	22.5
MK61S-S18	6	G1/8"	6~8mm	18	29.5
MK61S-S24	6	G1/8"	6~8mm	24	40.1
MK61S-S36	6	G1/8"	6~8mm	36	53.8

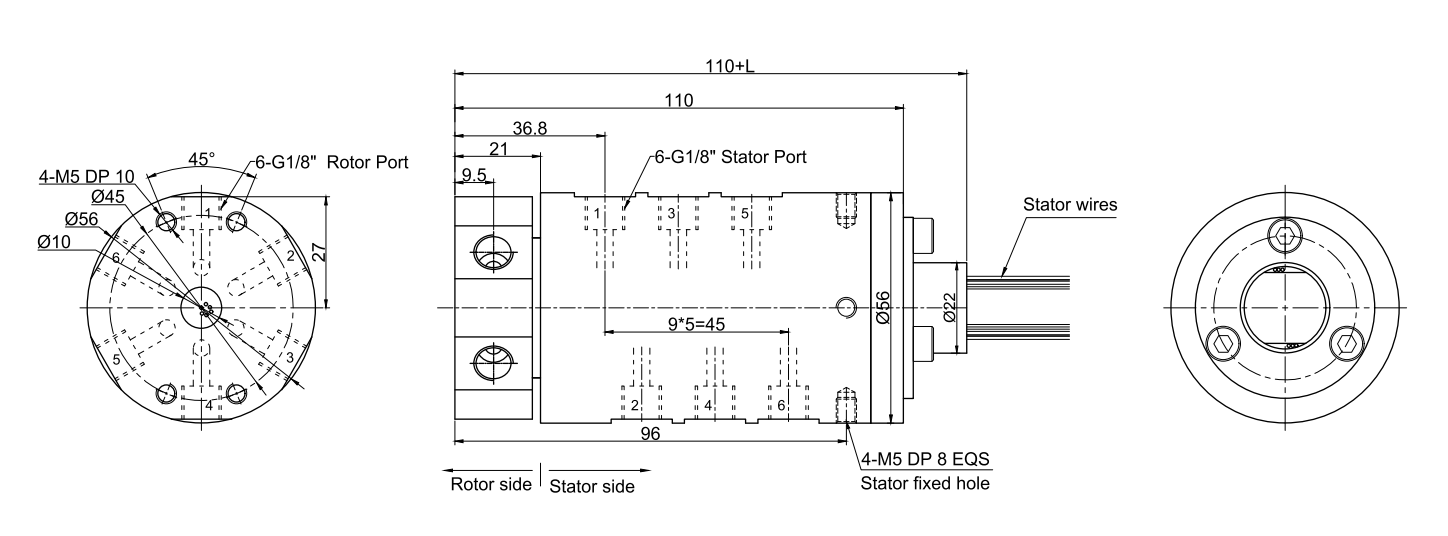

MK61S-S56 drawing 6 in 6 out, connection size G1/8"

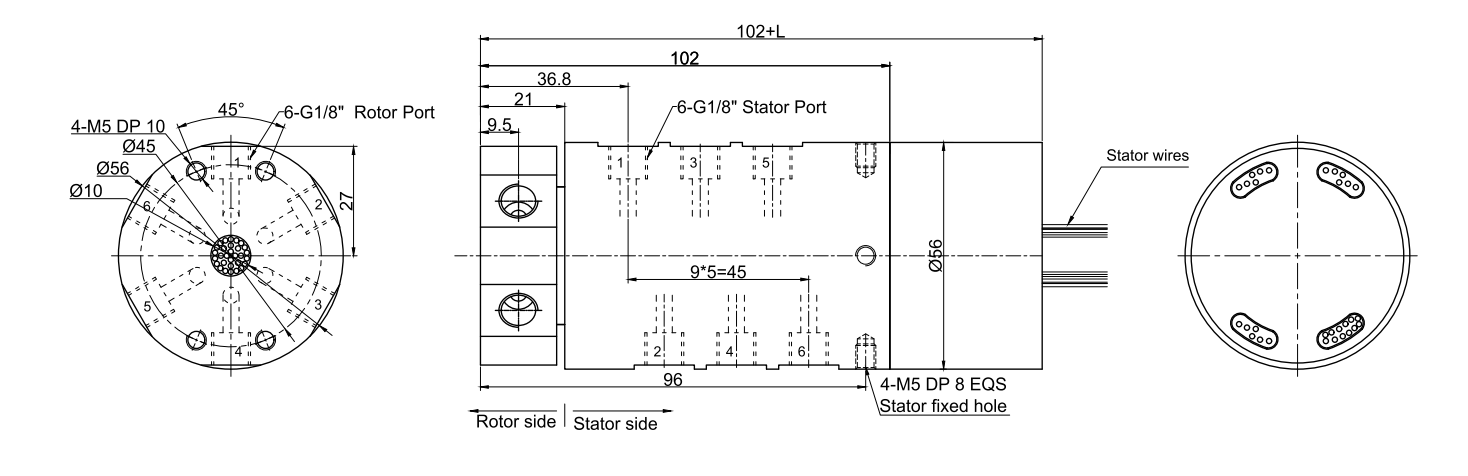

MK61+MT1256 (6~24 channels) drawin,6 in 6 out, connection size G1/8"+signal(5A)/10A

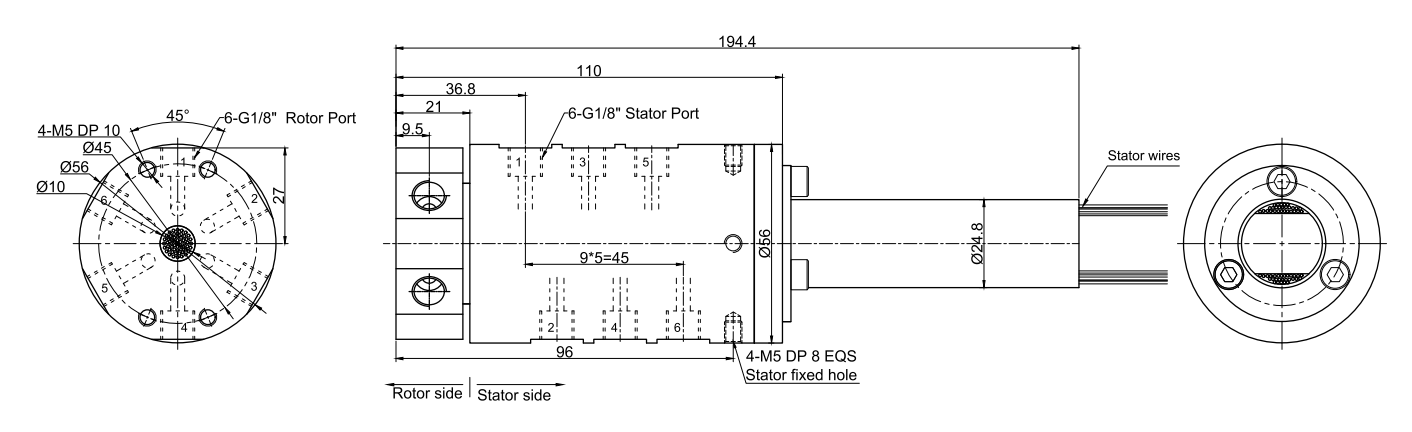

MK61+MT1256 (30 routes and above)drawing，6 in 6 out, connection size G1/8"+signal(5A)/10A
