GJ4015 Series
Through bore 15mm, 4 inlet and 4 outlet
GJ4015 slip rings
  • GJ4015 series is rotary joint for water,and other media with through bore 15mm, 4 inlet and 4 outlet, can be customized with electric slip rings.
  • GJ4015 have two port size G1/8、G3/8 ,It can transfer media as compressed aird, vacuum, hydrogen, nitrogen, steam, cooling water, hot water, oil and so on.
Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeSealing Element
VC100RPM10Million Revs.Common Seals
VD300RPM30Million Revs.High-Quality Seals

Rotary Union Specifications
Passage4 in 4 out
Max.10MPa,Vacuum 0.01torr
TorqueSee Part#List

GJ4015 Parts# List
Part#Connection sizeTorque(N.M)Connection sizeID

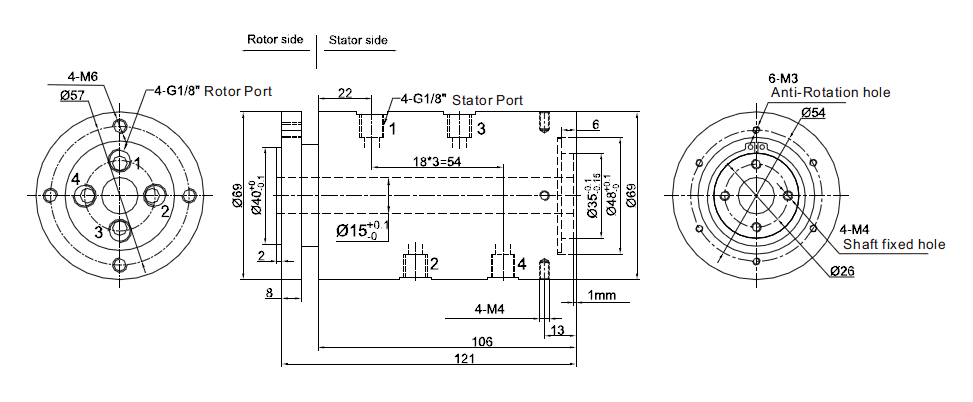

GJ4015-024 in 4 out2.3G1/815mm
GJ4015-034 in 4 out2.5G3/815mm

GJ4015-02 4 inlet 4 outlet, G1/8

GJ4015-03 4 inlet 4 outlet, G3/8
