MAPH104 Series
1 Inlet 4 Outlet Rotary Unions + 0~96 Circuits

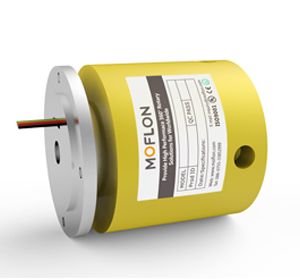

MAPH104 slip rings
  • MAPH104 series is 1 inlet 4 outlet pneumatic/hydraulic rotary unions (optional + electrical slip rings) could connect with M5、G1/8、G1/4、G3/8、G1/2 channel ,also can combine with 2~96 power wires,signal wires ,Ethernet, USB, Industrial BUS, control line, solenoid valve, sense line,etc. It's Standard Flange installation, hollow shaft can be customized as well.
    Media Types: Air/Gas,Vacuum,Chemical,DI/Tap Water,Oil,etc.

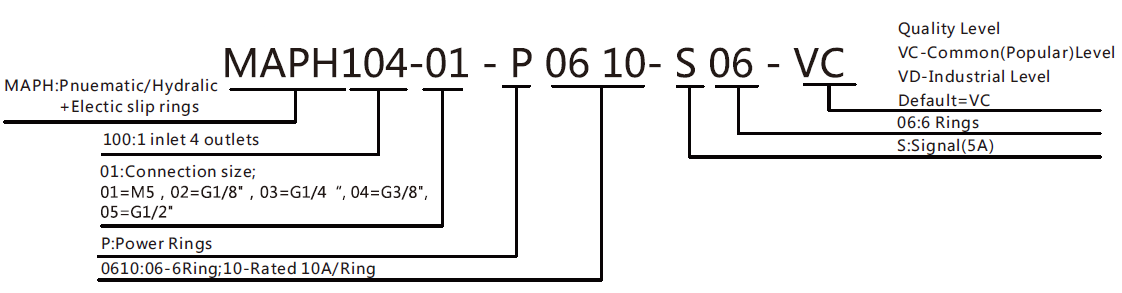

Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax sppedWorking LifeSealing Element
VC100RPM10Million Revs.Common Seals
VD300RPM30Million Revs.High-Quality Seals

Specification
Rotary Union SpecificationsMechanical data
ParameterValueParameterValue
Passage1 in 4 outWorking LifeSee Prod Quality Level
Max.10MPa,Vacuum 0.01torrRotating SpeedSee Prod Quality Level
TorqueConsult technician about detailsWorking Temp.-30℃~80℃
Electrical dataOperating Humidity0~85% RH
ParameterValueContact MaterialPrecious Metal
PowerSignalHousing MaterialAluminium Alloy
Rated Voltage0~440VAC/VDC0~440VAC/VDCProtection gradeIP51
Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Lead WiresAWG16#Teflon/PVCAWG22#Teflon
Lead LengthStandard 300mm
Dielectric Strength500VAC@50Hz,60s
Res Noise<0.01Ω



MAPH104-01 1 inlet 4 outlet, M5


MAPH104-02 1 inlet 4 outlet, G1/8"


MAPH104-03 1 inlet 4 outlet, G1/4"


MAPH104-04 1 inlet 4 outlet, G3/8"


MAPH104-05 1 inlet 4 outlet, G1/2"

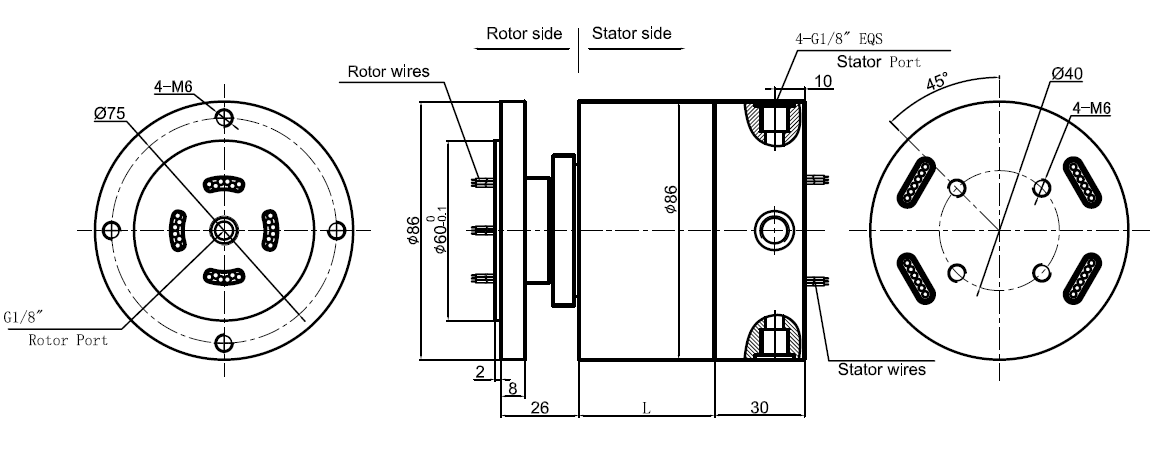

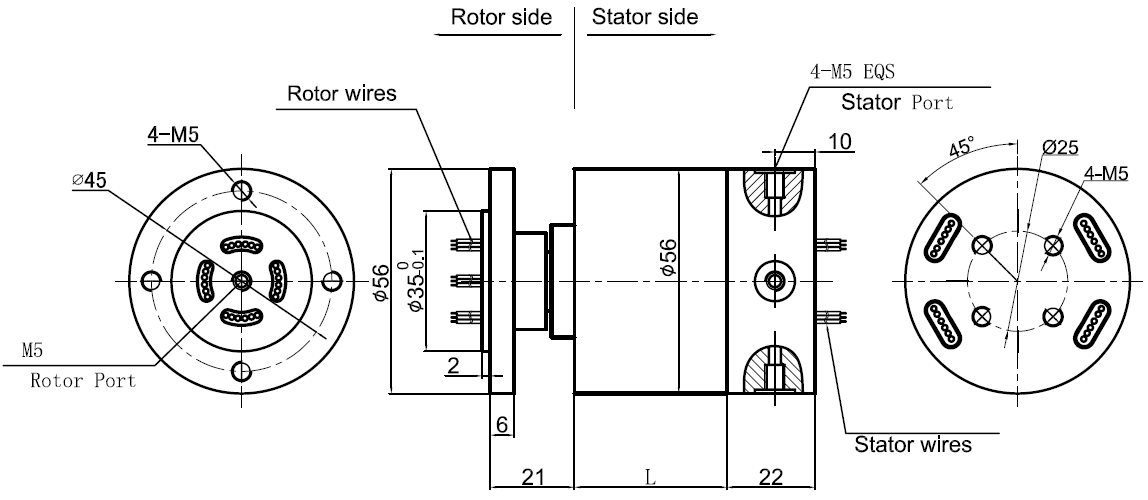

MAPH104-01, MAPH104-02 series
1)XX=01,Connection size=M5,Tube size 3~6mm
2)XX=02,Connection size=G1/8,Tube size 3~10mm
Part#Passages10ASignal/5ALength(mm)Part#Passages10ASignal/5ALength(mm)
MAPH104-XX-S061 in 4 out0638MAPH104-XX-P0810-S101 in 4 out81071.6
MAPH104-XX-P0210-S041 in 4 out2438MAPH104-XX-P1010-S081 in 4 out10871.6
MAPH104-XX-P0410-S021 in 4 out4238MAPH104-XX-P1210-S061 in 4 out12671.6
MAPH104-XX-P06101 in 4 out6038MAPH104-XX-P1410-S041 in 4 out14471.6
MAPH104-XX-S121 in 4 out12054.8MAPH104-XX-P1610-S021 in 4 out16271.6
MAPH104-XX-P0210-S101 in 4 out21054.8MAPH104-XX-S241 in 4 out02488.4
MAPH104-XX-P0310-S091 in 4 out3954.8MAPH104-XX-P0410-S201 in 4 out42088.4
MAPH104-XX-P0610-S061 in 4 out6654.8MAPH104-XX-P0610-S181 in 4 out61888.4
MAPH104-XX-P0810-S041 in 4 out8454.8MAPH104-XX-P1210-S121 in 4 out121288.4
MAPH104-XX-P1010-S021 in 4 out10254.8MAPH104-XX-S301 in 4 out030105.2
MAPH104-XX-P12101 in 4 out12054.8MAPH104-XX-P0610-S241 in 4 out624105.2
MAPH104-XX-S181 in 4 out01871.6MAPH104-XX-S361 in 4 out036125
MAPH104-XX-P0210-S161 in 4 out21671.6MAPH104-XX-S421 in 4 out042141.8
MAPH104-XX-P0410-S141 in 4 out41471.6MAPH104-XX-S481 in 4 out048158.6
MAPH104-XX-P0610-S121 in 4 out61271.6

10A and Signal(5A) can be combined in any way as you need,Max.Ring:96 rings,Can be customized based on standard slip rings,Please contact us.

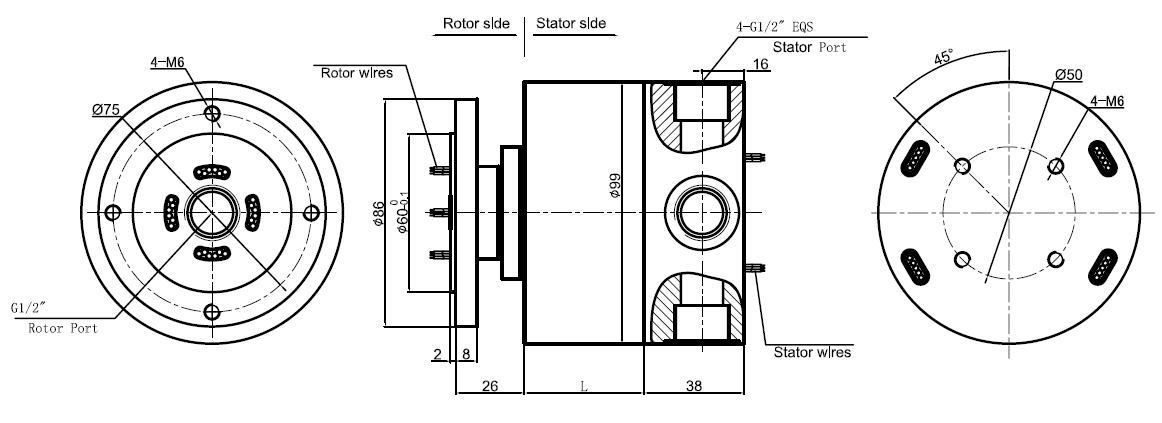

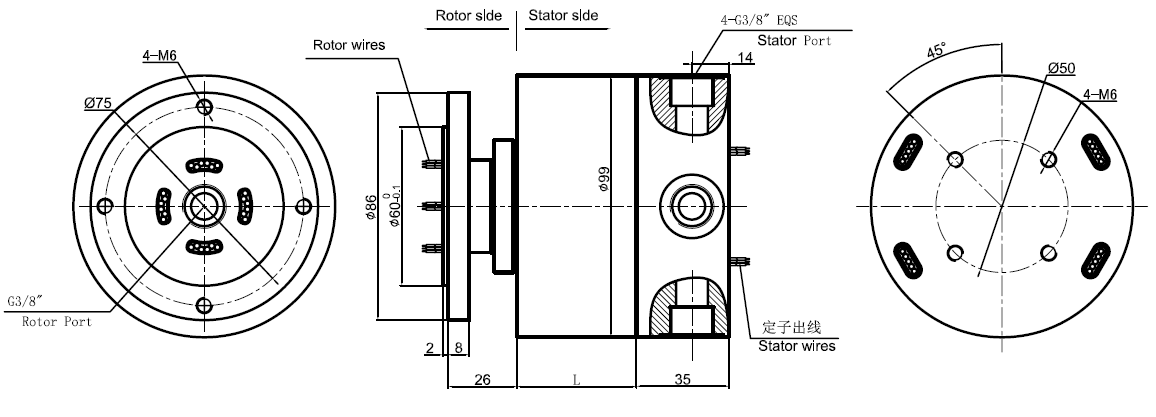

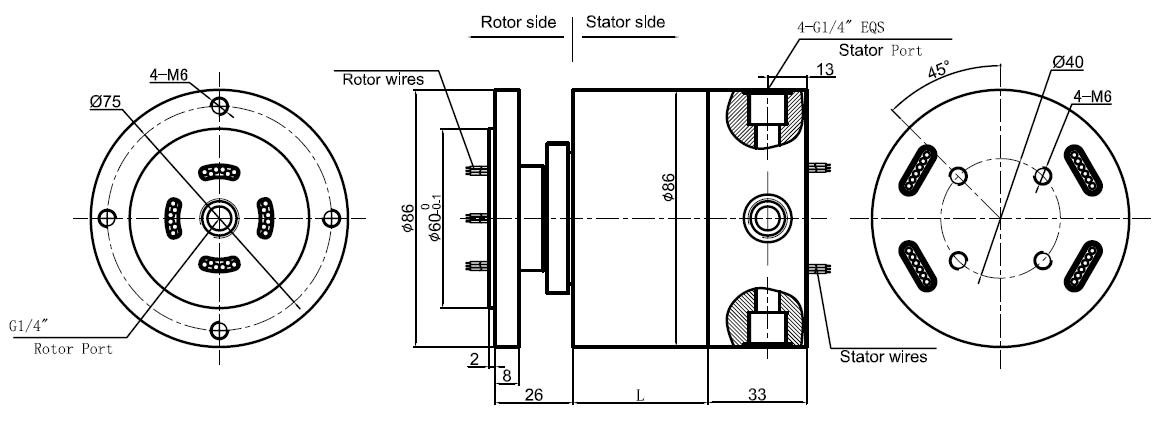

MAPH104-03, MAPH104-04, MAPH104-05 series
1)XX=03, Connection size=G1/4,Tube size 3~12mm
2)XX=04, Connection size=G3/8,Tube size 8~16mm
3)XX=05, Connection size=G1/2,Tube size 10~20mm
Part#Passages10ASignal/5ALength(mm)Part#Passages10ASignal/5ALength(mm)
MAPH104-XX-S061 in 4 out0645.2MAPH104-XX-S361 in 4 out036150.2
MAPH104-XX-P0210-S041 in 4 out2445.2MAPH104-XX-P0610-S301 in 4 out630150.2
MAPH104-XX-P0410-S021 in 4 out4245.2MAPH104-XX-P1210-S241 in 4 out1224150.2
MAPH104-XX-P06101 in 4 out6045.2MAPH104-XX-P36101 in 4 out360150.2
MAPH104-XX-S121 in 4 out01265.6MAPH104-XX-S421 in 4 out042170.6
MAPH104-XX-P0210-S101 in 4 out21065.6MAPH104-XX-P0610-S361 in 4 out636170.6
MAPH104-XX-P0310-S091 in 4 out3965.6MAPH104-XX-P1210-S301 in 4 out1230170.6
MAPH104-XX-P0610-S061 in 4 out6665.6MAPH104-XX-P42101 in 4 out420170.6
MAPH104-XX-P0810-S041 in 4 out8465.6MAPH104-XX-S481 in 4 out048191
MAPH104-XX-P1010-S021 in 4 out10265.6MAPH104-XX-P0610-S421 in 4 out642191
MAPH104-XX-P12101 in 4 out12065.6MAPH104-XX-P1210-S361 in 4 out1236191
MAPH104-XX-S181 in 4 out01886MAPH104-XX-P1810-S301 in 4 out1830191
MAPH104-XX-P0210-S161 in 4 out21686MAPH104-XX-P2410-S241 in 4 out2424191
MAPH104-XX-P0410-S141 in 4 out41486MAPH104-XX-P48101 in 4 out480191
MAPH104-XX-P0610-S121 in 4 out61286MAPH104-XX-S601 in 4 out060231.8
MAPH104-XX-P0810-S101 in 4 out81086MAPH104-XX-P0610-S541 in 4 out654231.8
MAPH104-XX-P1010-S081 in 4 out10886MAPH104-XX-P0910-S511 in 4 out951231.8
MAPH104-XX-P1210-S061 in 4 out12686MAPH104-XX-P1210-S481 in 4 out1248231.8
MAPH104-XX-P1410-S041 in 4 out14486MAPH104-XX-P2410-S361 in 4 out2436231.8
MAPH104-XX-P1610-S021 in 4 out16286MAPH104-XX-S721 in 4 out072275.6
MAPH104-XX-S241 in 4 out024106.4MAPH104-XX-P1210-S601 in 4 out1260275.6
MAPH104-XX-P0410-S201 in 4 out420106.4MAPH104-XX-P2410-S481 in 4 out2448275.6
MAPH104-XX-P0610-S181 in 4 out618106.4MAPH104-XX-P3610-S361 in 4 out3636275.6
MAPH104-XX-P1210-S121 in 4 out1212106.4MAPH104-XX-S841 in 4 out084316.4
MAPH104-XX-P1810-S061 in 4 out186106.4MAPH104-XX-P1210-S721 in 4 out1272316.4
MAPH104-XX-P24101 in 4 out240106.4MAPH104-XX-P2410-S601 in 4 out2460316.4
MAPH104-XX-S301 in 4 out030126.8MAPH104-XX-P3610-S481 in 4 out3648316.4
MAPH104-XX-P0610-S241 in 4 out624126.8MAPH104-XX-S961 in 4 out096357.2
MAPH104-XX-P1210-S181 in 4 out1218126.8MAPH104-XX-P1210-S841 in 4 out1284357.2
MAPH104-XX-P1810-S121 in 4 out1812126.8MAPH104-XX-P2410-S721 in 4 out2472357.2
MAPH104-XX-P2410-S061 in 4 out246126.8MAPH104-XX-P3610-S601 in 4 out3660357.2
MAPH104-XX-P30101 in 4 out300126.8MAPH104-XX-P4210-S541 in 4 out3660357.2

10A and Signal(5A) can be combined in any way as you need,Max.Ring:96 rings,Can be customized based on standard slip rings,Please contact us.
