MAPH200S Series
2 Inlet 2 Outlet Rotary Unions + 0~96 Circuits
MAPH200S slip rings
  • MAPH200S series is 2 inlet 2 outlet pneumatic/hydraulic rotary unions (optional + electrical slip rings) could connect with M5、G1/8、G1/4、G3/8、G1/2 channel ,also can combine with 2~96 power wires,signal wires ,Ethernet, USB, Industrial BUS, control line, solenoid valve, sense line,etc. It's Standard Flange installation, hollow shaft can be customized as well.
    Media Types: Air/Gas,Vacuum,Chemical,DI/Tap Water,Oil,etc.
Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax sppedWorking LifeSealing Element
VC100RPM10Million Revs.Common Seals
VD300RPM30Million Revs.High-Quality Seals

Specification
Rotary Union SpecificationsMechanical data
ParameterValueParameterValue
Passage2 in 2 outWorking LifeSee Prod Quality Level
Max.10MPa,Vacuum 0.01torrRotating SpeedSee Prod Quality Level
TorqueConsult technician about detailsWorking Temp.-30℃~80℃
Electrical dataOperating Humidity0~85% RH
ParameterValueContact MaterialPrecious Metal
PowerSignalHousing MaterialAluminium Alloy
Rated Voltage0~240VAC/VDC0~240VAC/VDCProtection gradeIP51
Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Lead WiresAWG28#TeflonAWG28#Teflon
Lead LengthStandard 300mm
Dielectric Strength500VAC@50Hz,60s
Res Noise<0.01Ω



MAPH200S-01 (2 passages, M5)


MAPH200S-02 (2 passages, G1/8")


MAPH200S-03 (2 passages, G1/4")

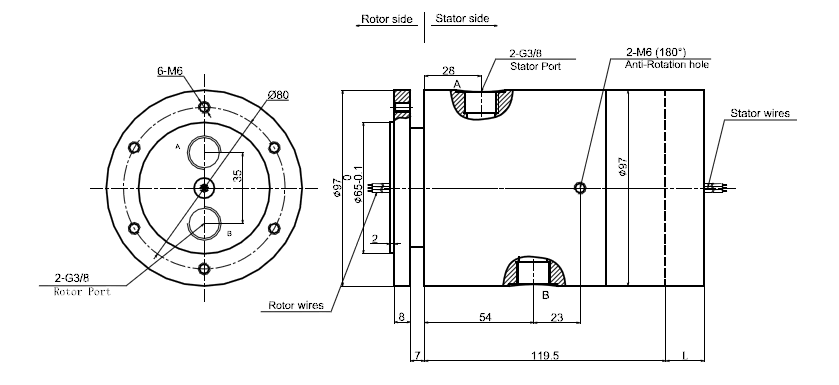

MAPH200S-04 (2 passages, G3/8")


MAPH200S-05 (2 passages, G1/2")


MAPH200S-XX series
1)XX=01,Connection size=M5, Tube size3~6mm 2)XX=02,Connection size=G1/8,Tube size3~10mm
3)XX=03,Connection size=G1/4,Tube size3~12mm 4)XX=04,Connection size=G3/8,Tube size3~16mm
5)XX=05,Connection size=G1/2,Tube size3~20mm
Part#Pnuematic/Hydraulic Passage10ASignal/5ALength(mm)
MAPH200S-XX-S062 in 2 out0619
MAPH200S-XX-S122 in 2 out01226
MAPH200S-XX-S182 in 2 out01833
MAPH200S-XX-S242 in 2 out02443.6
MAPH200S-XX-S362 in 2 out03657.3
MAPH200S-XX-S562 in 2 out05685.7

10A and Signal(5A) can be combined in any way as you need,Max.Ring:96 rings,Can be customized based on standard slip rings,Please contact us.
