GG035 Series
OD 35mm, 1~24 rings,5A/signal
Rotating Power Plug
  • The GG035 series high-speed stator flange conductive slip rings refer to a series of slip rings with a stator part and a connecting flange, with an outer diameter of 35MM, suitable for installation on the stator flange end face.

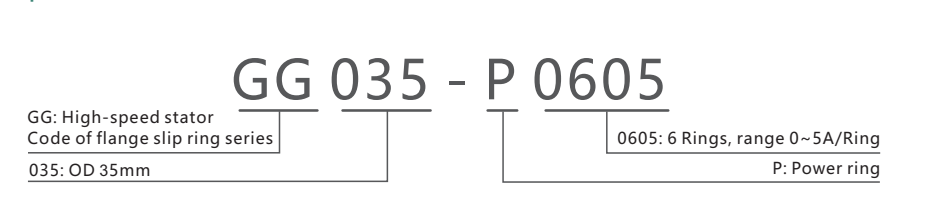

Standard series PART# Explanation

Rotating Electrical


Specifications of Rotating Electrical Slip Rings
Mechanical dataElectrical data
ParameterValueParameterValue
Working Life100 Million RevsPowerSignal
Rotating Speed1-1800RPMRated Voltage0~380VAC/VDC0~240VAC/VDC
Working Temp.-30℃~80℃/-45°C~80°CInsulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85%RH/0-97%RHLead WiresAWG17#TeflonAWG22#Teflon
Contact Materialprecious metalLead Lengthstandard length300mm(adjustable)
Housing MaterialAluminium Alloy+engineering plasticDielectric Strength500VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.03Ω
Protection gradeIP51



GG035 Series Parts# List
Part#Signal/5ALength(mm)
GG035-P0605631.2
GG035-P12051245
GG035-P18051858.8
GG035-P24052472.6

what is rotating electrical(rotating electric) and rotating power plug?

A electrical device which can transmit power/signal from stator part to rotor part, at the same time, wires is not twisted. at most time, we also call it as slip rings or electrical slip rings. moflon supply full range of rotating electrical(rotating electric) and rotating power plug products for agricultural, industrial, automotive, heavy duty, marine and powersports applications for the aftermarket.

If you have special requirements about rotating electrical(rotating electric) and rotating power plug, please contact customer service.
