MUSB1222 Series
MUSB series USB Slip Rings
MUSB1222 slip rings

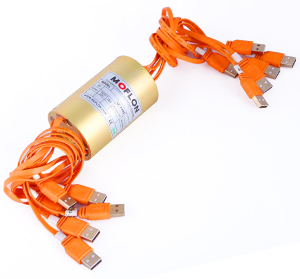

  • MUSB1222 USB series slip ring, solid flange design, OD 22mm,support 2 channels USB1.0/2.0, can transmit power and signal. It can tansmit signal stably, without code loss, has low insertion loss.
    Using military depositing technique, precious metal and super hard goldplated processing, it has minimum BER error rate and high signal-to-noise ratio(SNR)
Standard series PART# Explanation

USB specificationsMechanical data
USBUSB1.0,USB2.0Working Life10Million Revs.
ConnectorUSB TYPE-A female connectorRotating Speed250RPM
BER Error rate10E-11Working Temp.-30℃~80℃
Electrical dataOperating Humidity0~85% RH
ParameterValueContact MaterialGold-Gold
PowerSignalHousing MaterialAluminium Alloy
Rated Voltage0~440VAC/VDC0~440VAC/VDCTorque0.1N.m;+0.03/6ring
Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDCProtection gradeIP51
Lead WiresAWG28#TeflonAWG28#Teflon
Lead LengthStandard 300mm
Dielectric Strength500VAC@50Hz,60s
Res Noise<0.01Ω

MUSB1222 - 2 channel USB series part#list
Part#USB channel5ASignal/2ALength(mm)
MUSB1222-S28 *202857.3

1)Please contact sales if you need drawing.
2)10A,20A,5A can be combined according to your requirements,please contact sales.
