MW4032 Series
MW series Power Slip Rings
MW4032 slip rings
  • MW4032 series is inserting large current slip ring without mercury. Except conventional advantages, it has advantages of convenient connection and stronger current-carrying capability. It can replace the conventional mercury slip ring. This series slip ring is especially designed for industrial manufacturing industry, which can fully meet national and EU environmental standards, in line with international environment requirements. The conducting ring adopts precious metal with plating processing; the electrical brush adopts precious alloy wire; the connector adopts standard flat connector which is convenient for connection.
Standard series PART# Explanation

Mechanical DataElectrical Data
Working Life20 Million revsPowerSignal
Rotating Speed250RPMRated Voltage0~690VAC/VDC0~440VAC/VDC
Working temp-30℃~80℃Insulation Resistance≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresExit with pinsExit with pins
Contact MaterialGold-platedLead LengthStandard 300mm
Housing Materiaengineering plasticsDielectric Strength500VAC@50Hz,60s
Torque0.1N.m;+0.03/1ringElectrical Noise<0.01Ω
Protection gradeIP51

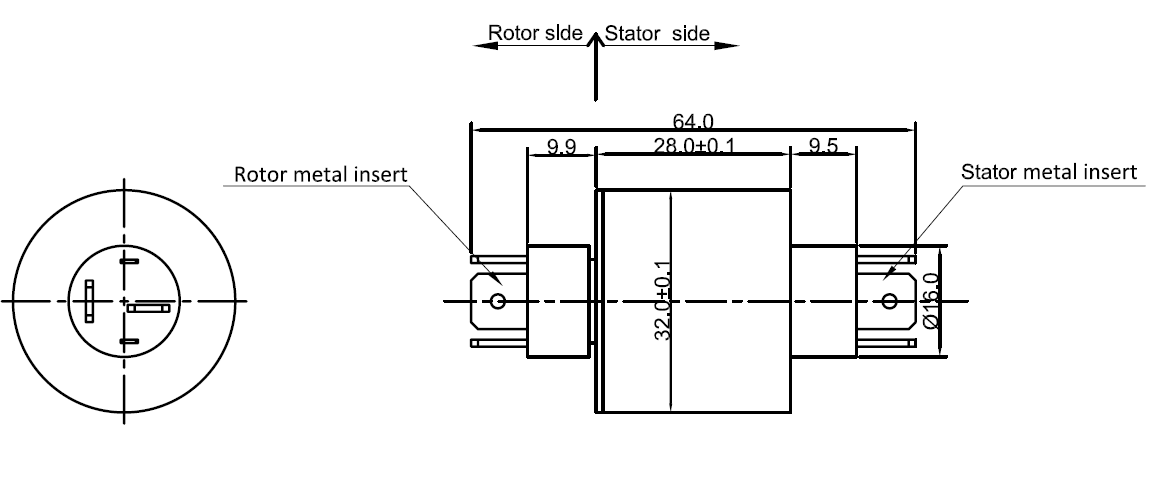

MW4032-P0230 drawing

MW4032-P0330 drawing

MW4032-P0230-P0208 drawing

MW4032 Series(Insertion)slip ring part# list
Part#30ASignal or 8ALength(mm)Remarks
MW4032-P02302047.4Can replace A2H,M230
MW4032-P03303047.4Can replace A3H,M330
MW4032-P0230-P02082247.4Can replace A4H,M430

Note: 1. N channels 60A rings parallel can be used as 1 channel N * 60A current. For example: 2 rings 60A parallel could be used as 1 wires 120A
