MZ056 Series
OD 56mm, 2~48 rings
MZ056 slip rings
  • MZ056 series slip ring is a general name for those rotor flange slip rings with OD(outer diameter) 56mm. This slip ring is solid without through bore, which is suitable for end face mounting by rotor flange.

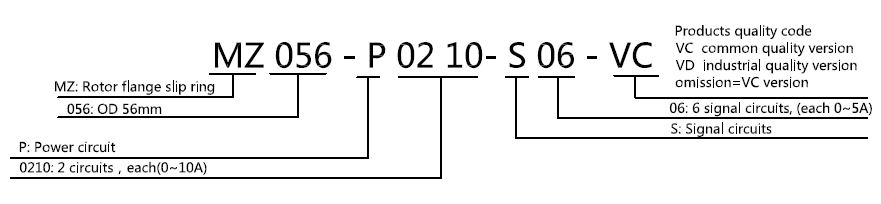

Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax sppedWorking LifeContact Material
VC250RPM15Million Revs.Precious Metal
VD1000RPM80Million Revs.Precious Metal

Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working LifeSee Prod Quality LevelPowerSignal
Rotating SpeedSee Prod Quality LevelRated Voltage0~440VAC/VDC0~440VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG16#Teflon/PVCAWG22#Teflon/PVC
Contact MaterialSee Prod Quality LevelLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength500VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.01Ω
Protection gradeIP51



MZ056 series slip ring part list
Part#10ASignal/5ALength(mm)Part#10ASignal/5ALength(mm)
MZ056-S020226.8MZ056-P1010-S0810871.5
MZ056-P02102026.8MZ056-P1210-S0612671.5
MZ056-S030329.6MZ056-P1410-S0414471.5
MZ056-P03103029.6MZ056-P1610-S0216271.5
MZ056-S060638MZ056-S2402488.4
MZ056-P0210-S042438MZ056-P0410-S2042088.4
MZ056-P0410-S024238MZ056-P0610-S1861888.4
MZ056-P06106038MZ056-P1210-S12121288.4
MZ056-S1201254.8MZ056-P1810-S0618688.4
MZ056-P0210-S1021054.8MZ056-P241024088.4
MZ056-P0310-S093954.8MZ056-S30030105.2
MZ056-P0610-S066654.8MZ056-P0210-S28228105.2
MZ056-P0810-S048454.8MZ056-P0410-S26426105.2
MZ056-P1010-S0210254.8MZ056-P0610-S24624105.2
MZ056-P121012054.8MZ056-S36036122
MZ056-S1801871.5MZ056-P0410-S32432122
MZ056-P0210-S1621671.5MZ056-P0610-S30630122
MZ056-P0410-S1441471.5MZ056-S42042138.8
MZ056-P0610-S1261271.5MZ056-P0410-S38438138.8
MZ056-P0810-S1081071.5MZ056-S48048155.6

If you have special requirements, please contact customer service.
