GT1235 Series
Bore size 12.7mm, OD 35mm - Rotary Electrical Connectors
rotary electrical connector and rotary electrical joint

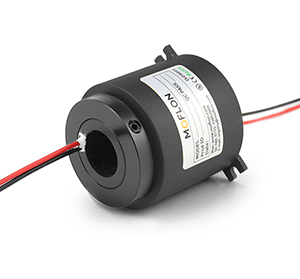

  • GT1235 series is a rotary electrical connector(rotary electrical joint) with bore size 12.7mm, OD 35mm, support 2~12 circuits.
  • Standard compact rotary electrical joint with bore size 12.7mm(1/2”,used for<=12.7mm),OD 35mm.*Attention:if required through bore <12.7mm,this can besolved by adding a sleeve inside the bore.

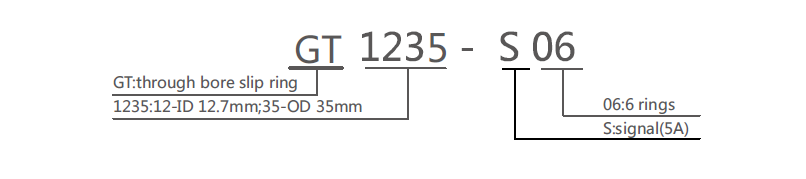

Standard series PART# Explanation



Specifications of Rotary Electrical Connector
Mechanical dataElectrical data
ParameterValueParameterValue
Working Life100 Million RevsPowerSignal
Rotating Speed1~1800PRMRated Voltage0~240VAC/VDC0~240VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥500MΩ/500VDC≥500MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG22TeflonAWG22#Teflon
Contact MaterialPrecious MetalLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength500VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.03Ω
Protection gradeIP51



GT1235 Series Parts# List
Part#Signal/5ALength(mm)
GT1235-S02230.4
GT1235-S03330.4
GT1235-S04430.4
GT1235-S06630.4
GT1235-S08844.2
GT1235-S101044.2
GT1235-S121244.2
GT1235-S141458
GT1235-S161658
GT1235-S181858
GT1235-S202071.8
GT1235-S222271.8
GT1235-S242471.8

What is rotary electrical connector and rotary electrical joint?

Rotary electrical connector is a connector used to transfer power or signal from a stationary part to a rotating part, preserving and isolating the electrical connection. Rotary electrical joint is a joint used to transfer power or signal from a stationary part to a rotating part, preserving and isolating the electrical connection when rotating 360°.

Moflon offer standard rotary electrical connector and rotary electrical joint product lines grouped by function and feature exclusive contact technology selected for compatibility to each application's current, voltage, temperature, speed, and required service life.

Moflon's rotary electrical connector and rotary electrical joints are used for railroad equipment,industrial / commercial in-plant equipment:,automated welding equipment,conveyor systems,rotating signs,lighting displays,down hole drill and geotechnical,custom machinery,fabrication equipment,food processing machinery,drilling & other boring equipment:,off-shore drilling rigs and so on.

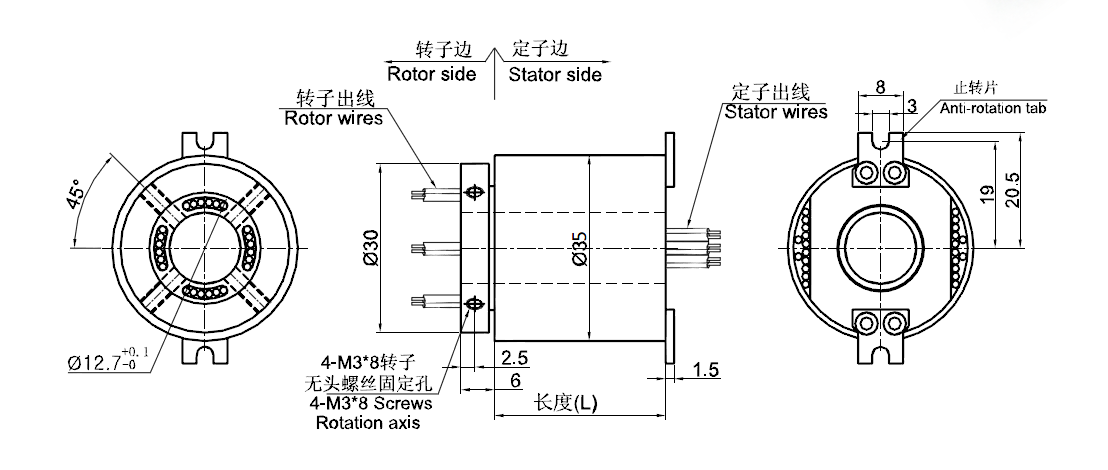

For a detailed outline drawing of a specific model number, or to request a quotation, please contact your local sales representative (see our website http://www.moflon.com/contact.html) or send an email to sales@moflon.com
