GT1256 Series
Bore size 12.7mm, OD 56mm, 2~48 rings

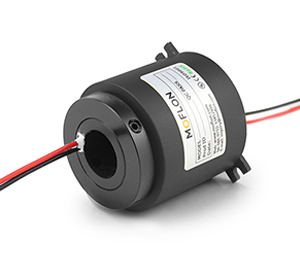

GT1256 slip rings
  • Standard compact slip ring with bore size 12.7mm(1/2”,used for<=12.7mm),OD 56mm. *Attention:if required through bore <12.7mm,this can be solved by adding a sleeve inside the bore.

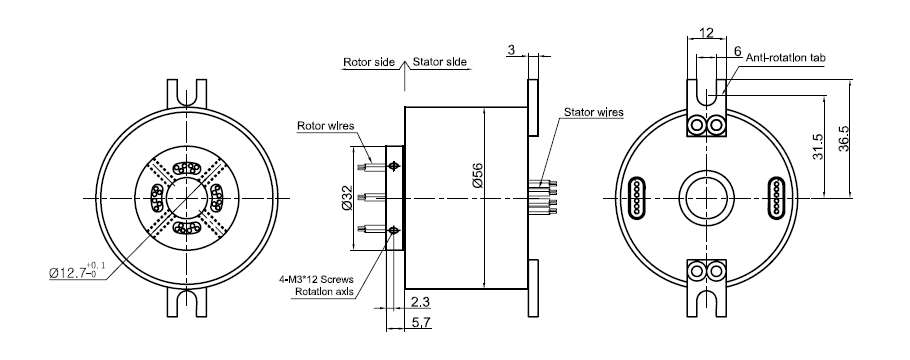

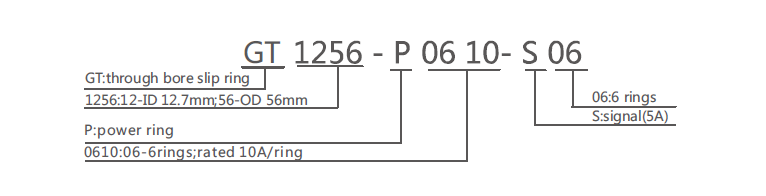

Standard series PART# Explanation


Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working Life100 Million RevsPowerSignal
Rotating Speed1~1800PRMRated Voltage0~440VAC/VDC0~440VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG17#TeflonAWG22#Teflon
Contact MaterialPrecious MetalLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength500VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.03Ω
Protection gradeIP51



GT1256 Series Parts# List
Part#10ASignal/5ALength(mm)Part#10ASignal/5ALength(mm)
GT1256-S020234.6GT1256-P1010-S0810879.4
GT1256-P02102034.6GT1256-P1210-S0612679.4
GT1256-S030337.4GT1256-P1410-S0414479.4
GT1256-P03103037.4GT1256-P1610-S0216279.4
GT1256-S060645.8GT1256-P181018079.4
GT1256-P0210-S042445.8GT1256-S2402496.2
GT1256-P0410-S024245.8GT1256-P0410-S2042096.2
GT1256-P06106045.8GT1256-P0610-S1861896.2
GT1256-S1201262.6GT1256-P1210-S12121296.2
GT1256-P0210-S1021062.6GT1256-P1810-S0618696.2
GT1256-P0310-S093962.6GT1256-S30030113
GT1256-P0610-S066662.6GT1256-P0210-S28228113
GT1256-P0810-S048462.6GT1256-P0410-S26426113
GT1256-P1010-S0210262.6GT1256-P0610-S24624113
GT1256-P121012062.6GT1256-S36036132.8
GT1256-S1801879.4GT1256-P0410-S32432132.8
GT1256-P0210-S1621679.4GT1256-P0610-S306132.8158.6
GT1256-P0410-S1441479.4GT1256-S42042149.6
GT1256-P0610-S1261279.4GT1256-P0410-S38438149.6
GT1256-P0810-S1081079.4GT1256-S48048166.4

Note: Power 10A and signal(5A) can combine freely, please contact customer service for more details. Our slip rings can be customized on the basis of standard slip rings. Should contact customer service for more information.
