GT3099F Series
Bore size 30mm, OD 99mm, 2~72 rings, Rotor Flange
GT3099F slip rings
  • Standard compact series slip ring with bore size 30mm(used for<=30mm),OD 99mm.*Attention:if required through bore <30mm,this can be solved by adding a sleeve inside the bore.

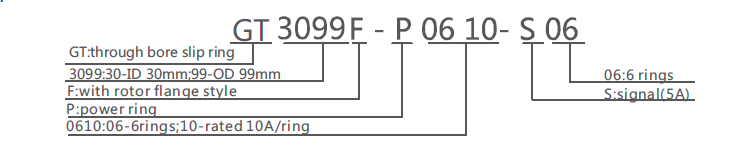

Standard series PART# Explanation


Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working Life100 Million RevsPowerSignal
Rotating Speed1~1800RPMRated Voltage0~690VAC/VDC0~440VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG16#Teflon/PVCAWG16#Teflon/PVC
Contact MaterialPrecious MetalLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength1000VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.03Ω
Protection gradeIP51



GT3099F Series Parts# List
Part#10ASignal/5ALength(mm)Part#10ASignal/5ALength(mm)
GT3099F-S020239.2GT3099F-P1210-S121212114
GT3099F-P02102039.2GT3099F-P1810-S06186114
GT3099F-S030342.6GT3099F-P2410240114
GT3099F-P03103042.6GT3099F-S30030134.4
GT3099F-S060652.8GT3099F-P0610-S24624134.4
GT3099F-P0210-S042452.8GT3099F-P1210-S181218134.4
GT3099F-P0410-S024252.8GT3099F-P1810-S121812134.4
GT3099F-P06106052.8GT3099F-P2410-S06246134.4
GT3099F-S1201273.2GT3099F-P3010300134.4
GT3099F-P0210-S1021073.2GT3099F-S36036157.8
GT3099F-P0310-S093973.2GT3099F-P0610-S30630157.8
GT3099F-P0610-S066673.2GT3099F-P1210-S241224157.8
GT3099F-P0810-S048473.2GT3099F-P3610360157.8
GT3099F-P1010-S0210273.2GT3099F-S42042178.2
GT3099F-P121012073.2GT3099F-P0610-S36636178.2
GT3099F-S1801893.6GT3099F-P1210-S301230178.2
GT3099F-P0210-S1621693.6GT3099F-S48048198.6
GT3099F-P0410-S1441493.6GT3099F-P0610-S42642198.6
GT3099F-P0610-S1261293.6GT3099F-P0910-S39939198.6
GT3099F-P0810-S1081093.6GT3099F-P1210-S361236198.6
GT3099F-P1010-S0810893.6GT3099F-P1810-S301830198.6
GT3099F-P1210-S0612693.6GT3099F-P2410-S242424198.6
GT3099F-P1410-S0414493.6GT3099F-S60060242.4
GT3099F-P1610-S0216293.6GT3099F-P0610-S54654242.4
GT3099F-P181018093.6GT3099F-P0810-S52852242.4
GT3099F-S24024114GT3099F-P1010-S501050242.4
GT3099F-P0410-S20420114GT3099F-P1210-S481248242.4
GT3099F-P0610-S18618114GT3099F-S72072283.2

Note: Power 10A and signal(5A) can combine freely, please contact customer service for more details. Our slip rings can be customized on the basis of standard slip rings. Should contact customer service for more information.
(see our website http://www.moflon.com/contact.html)or send an email to sales@moflon.com
