GT2045 Series
Bore size 20mm, OD 45mm - Rotary Slip Rings
rotary electrical contact,rotary slip ring
  • GT2045 series is a rotary electrical contact,rotary slip ring with bore size 20mm, OD 45mm, support 2~12 circuits.

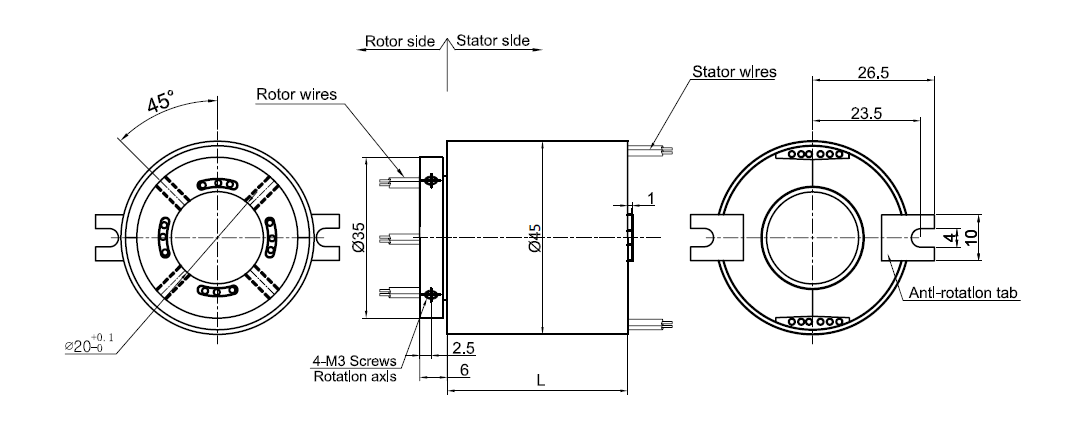

  • Standard compact series slip ring with bore size 20mm(used for<=20mm),OD 45mm.*Attention:if required through bore <20mm,this can be solved by adding a sleeve inside the bore.
Standard series PART# Explanation


Specification of Rotary Electrical Contact
Mechanical dataElectrical data
ParameterValueParameterValue
Working Life100 Million RevsPowerSignal
Rotating Speed1~1800PRMRated Voltage0~240VAC/VDC0~240VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥500MΩ/500VDC≥500MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG22TeflonAWG22#Teflon
Contact MaterialPrecious MetalLead LengthStandard 300mm
Housing MaterialEngineering PlasticsDielectric Strength500VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.03Ω
Protection gradeIP51



GT2045 Series Parts# List
Part#Signal/5ALength(mm)
GT2045-S02230.4
GT2045-S03330.4
GT2045-S04430.4
GT2045-S06630.4
GT2045-S08844.2
GT2045-S101044.2
GT2045-S121244.2
GT2045-S141458
GT2045-S161658
GT2045-S181858
GT2045-S202071.8
GT2045-S222271.8
GT2045-S242471.8

What is rotary electrical contact and rotary slip ring?

Rotary electrical contact is a slip ring used to transfer power or signal from a stationary part to a rotating part, preserving and isolating the electrical connection. Rotary slip ring is a connector used to transfer power or signal from a stationary part to a rotating part, preserving and isolating the electrical connection when rotating 360°.

Moflon offer standard rotary electrical contact and rotary slip ring product lines grouped by function and feature exclusive contact technology selected for compatibility to each application's current, voltage, temperature, speed, and required service life.

Moflon's rotary electrical contact and rotary slip rings are used for fabrication equipment,knuckle boom cranes,rotating platforms,rotational molding equi,pedestal cranes,intelligent machinery,position welding equipment,robotic welding equipment,rotary casting machines,laminating equipment,machine tools,food processing machinery,injection presses,rough terrain cranes,tower cranes,paper processing machinery,plating machinery,rotary index tables,welding machinery,winding machinery and so on.

For a detailed outline drawing of a specific model number, or to request a quotation, please contact your local sales representative
(see our website http://www.moflon.com/contact.html) or send an email to sales@moflon.com
