MFS086 Series
OD 86mm, 2~72 rings,IP65/IP68

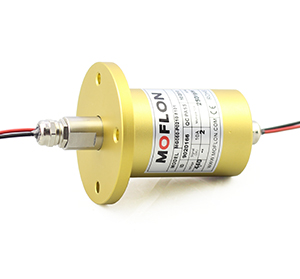

MFS086 slip rings
  • • Designed for water-proof or underwater working.
  • • Industrial quality level, stator flange,option for IP65,IP68.
  • • Gold-gold contact,with high quality seals.
  • • Specialized water-proof cable exit with stainless gland.
  • • Can be customized according to the requirements.
Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax sppedWorking LifeContact Material
VC200RPM15Million Revs.Precious Metal
VD600RPM80Million Revs.Precious Metal

Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working LifeSee Prod Quality LevelPowerSignal
Rotating SpeedSee Prod Quality LevelRated Voltage0~440VAC/VDC0~440VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresWater-proof cableWater-proof cable
Contact MaterialSee Prod Quality LevelLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength500VAC@50Hz,60s
Torque1.0N.m;+0.03/6ringRes Noise<0.01Ω
Protection gradeIP65





MFS086 Series slip ring
Part#10ASignal/5ALength(mm)Part#10ASignal/5ALength(mm)
MFS086-P06106045.2MFS086-S060645.2
MFS086-P0210-S04 2 445.2MFS086-P0410-S02 4 245.2
MFS086-P1210 12065.6MFS086-S120 1265.6
MFS086-P0210-S10 2 1065.6MFS086-P0410-08 4 865.6
MFS086-P06-S066 665.6MFS086-P0810-S04 8 465.6
MFS086-P1010-S02 10 265.6MFS086-S180 1886
MFS086-P1810 180 86MFS086-P0410-S14 4 1486
MFS086-P0210-S16 2 1686MFS086-P0810-S10 8 1086
MFS086-P0610-S126 1286MFS086-P1210-S06 12686
MFS086-P1010-S08 10 886MFS086-P1610-S02 16 286
MFS086-P1410-S04 14 486MFS086-S240 24106.4
MFS086-P24 240 106.4MFS086-P1210-S12 12 12106.4
MFS086-P0610-S186 18106.4MFS086-P0610-S24 6 24134
MFS086-P1810-S06 18 6106.4MFS086-S36 0 36150.2
MFS086-S30 0 30126.8MFS086-P1210-S24 12 24150.2
MFS086-P1210-S18 12 18126.8MFS086-P0610-S36 6 36170.6
MFS086-P0610-S306 30150.2MFS086-S48 0 48191
MFS086-S42 0 42170.6MFS086-P1210-S36 12 36191
MFS086-P1210-S30 12 30170.6MFS086-P0610-S54 6 54231.8
MFS086-P0610-S426 42191MFS086-S72 0 72275.6
MFS086-S60 0 60231.8MFS086-P1210-S60 12 60275.6
MFS086-P1210-S48 12 48231.8MFS086-P0610-S66 6 66275.6

Rings and current can be customized.
