GT50119 Series
Bore size 50mm, OD 119mm, 2~144 rings

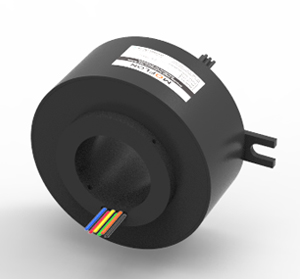

GT50119 slip rings
  • Standard compact series slip ring with bore size 50mm(used for<=12.7mm),OD 119mm,rotor flange mounting.
    *Attention:if required through bore <50mm,this can be solved by adding a sleeve inside the bore.
Standard series PART# Explanation


Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working Life100 Million RevsPowerSignal
Rotating Speed1~1800RPMRated Voltage0~690VAC/VDC0~440VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG16#TeflonAWG22#Teflon
Contact MaterialPrecious MetalLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength1000VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.03Ω
Protection gradeIP51





GT50119 Series Parts# List
Part#10ASignal/5ALength(mm)Part#10ASignal/5ALength(mm)
GT50119-S020243.6GT50119-P0610-S24624150
GT50119-P02102043.6GT50119-P1210-S181218150
GT50119-S030347.4GT50119-P1810-S121812150
GT50119-P03103047.4GT50119-P2410-S06246150
GT50119-S060658.8GT50119-P3010300150
GT50119-P0210-S042458.8GT50119-S36036176.8
GT50119-P0410-S024258.8GT50119-P0610-S30630176.8
GT50119-P06106058.8GT50119-P1210-S241224176.8
GT50119-S1201281.6GT50119-P3610360176.8
GT50119-P0210-S1021081.6GT50119-S42042199.6
GT50119-P0310-S093981.6GT50119-P0610-S36636199.6
GT50119-P0610-S066681.6GT50119-P1210-S301230199.6
GT50119-P0810-S048481.6GT50119-S48048222.4
GT50119-P1010-S0210281.6GT50119-P0610-S42642222.4
GT50119-P121012081.6GT50119-P0910-S39939222.4
GT50119-S18018104.4GT50119-P1210-S361236222.4
GT50119-P0210-S16216104.4GT50119-P1810-S301830222.4
GT50119-P0410-S14414104.4GT50119-P2410-S242424222.4
GT50119-P0610-S12612104.4GT50119-S60060273
GT50119-P0810-S10810104.4GT50119-P0610-S54654273
GT50119-P1010-S08108104.4GT50119-P0910-S51951273
GT50119-P1210-S06126104.4GT50119-P1210-S481248273
GT50119-P1410-S04144104.4GT50119-S72072273
GT50119-P1610-S02162104.4GT50119-P0610-S66666319
GT50119-P1810180104.4GT50119-P1210-S601260319
GT50119-S24024127.2GT50119-P2410-S482448319
GT50119-P0410-S20420127.2GT50119-P3610-S363636319
GT50119-P0610-S18618127.2GT50119-S84084373
GT50119-P1210-S121212127.2GT50119-P1210-S721272373
GT50119-P1810-S06186127.2GT50119-P2410-S602460373
GT50119-P2410240127.2GT50119-P3610-S483648373
GT50119-S30030150GT50119-S96096419

Note: Power 10A and signal(5A) can combine freely, please contact customer service for more details. Our slip rings can be customized on the basis of standard slip rings. Should contact customer service for more information.
