GT50119F Series
Bore size 50mm, OD 119mm, 2~144 rings, rotor flange
GT50119F slip rings
  • Standard compact series slip ring with bore size 50mm(used for<=12.7mm),OD 119mm,rotor flange mounting.
    *Attention:if required through bore <50mm,this can be solved by adding a sleeve inside the bore.

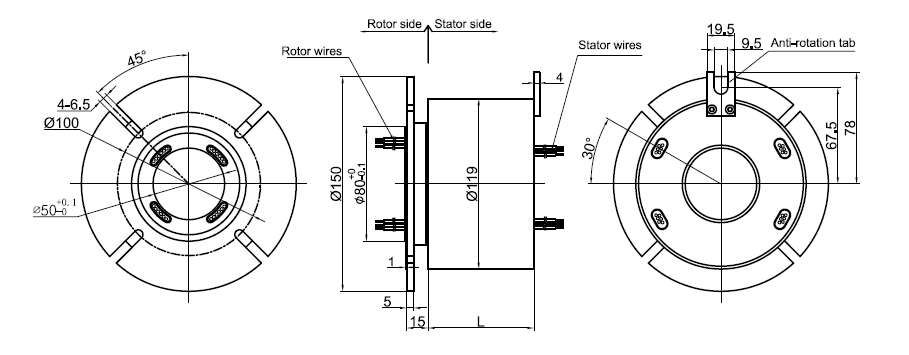

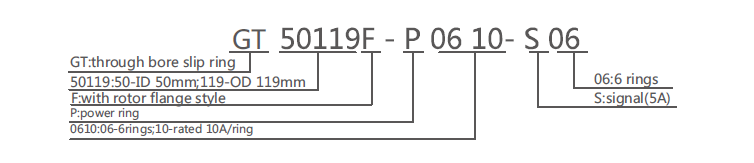

Standard series PART# Explanation


Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working Life100 Million RevsPowerSignal
Rotating Speed1~1800RPMRated Voltage0~690VAC/VDC0~440VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG16#TeflonAWG22#Teflon
Contact MaterialPrecious MetalLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength1000VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.03Ω
Protection gradeIP51



GT50119F Series Parts# List
Part#10ASignal/5ALength(mm)Part#10ASignal/5ALength(mm)
GT50119F-S020243.6GT50119F-P0610-S24624150
GT50119F-P02102043.6GT50119F-P1210-S181218150
GT50119F-S030347.4GT50119F-P1810-S121812150
GT50119F-P03103047.4GT50119F-P2410-S06246150
GT50119F-S060658.8GT50119F-P3010300150
GT50119F-P0210-S042458.8GT50119F-S36036176.8
GT50119F-P0410-S024258.8GT50119F-P0610-S30630176.8
GT50119F-P06106058.8GT50119F-P1210-S241224176.8
GT50119F-S1201281.6GT50119F-P3610360176.8
GT50119F-P0210-S1021081.6GT50119F-S42042199.6
GT50119F-P0310-S093981.6GT50119F-P0610-S36636199.6
GT50119F-P0610-S066681.6GT50119F-P1210-S301230199.6
GT50119F-P0810-S048481.6GT50119F-S48048222.4
GT50119F-P1010-S0210281.6GT50119F-P0610-S42642222.4
GT50119F-P121012081.6GT50119F-P0910-S39939222.4
GT50119F-S18018104.4GT50119F-P1210-S361236222.4
GT50119F-P0210-S16216104.4GT50119F-P1810-S301830222.4
GT50119F-P0410-S14414104.4GT50119F-P2410-S242424222.4
GT50119F-P0610-S12612104.4GT50119F-S60060273
GT50119F-P0810-S10810104.4GT50119F-P0610-S54654273
GT50119F-P1010-S08108104.4GT50119F-P0910-S51951273
GT50119F-P1210-S06126104.4GT50119F-P1210-S481248273
GT50119F-P1410-S04144104.4GT50119F-S72072273
GT50119F-P1610-S02162104.4GT50119F-P0610-S66666319
GT50119F-P1810180104.4GT50119F-P1210-S601260319
GT50119F-S24024127.2GT50119F-P2410-S482448319
GT50119F-P0410-S20420127.2GT50119F-P3610-S363636319
GT50119F-P0610-S18618127.2GT50119F-S84084373
GT50119F-P1210-S121212127.2GT50119F-P1210-S721272373
GT50119F-P1810-S06186127.2GT50119F-P2410-S602460373
GT50119F-P2410240127.2GT50119F-P3610-S483648373
GT50119F-S30030150GT50119F-S96096419

Note: Power 10A and signal(5A) can combine freely, please contact customer service for more details. Our slip rings can be customized on the basis of standard slip rings. Should contact customer service for more information.
