MFO400 Series
4 Channels Fibre Optic, Single-Mode or Multi-Mode

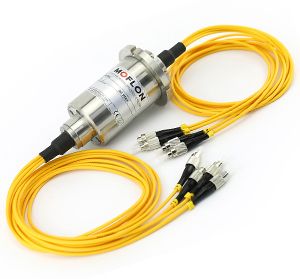

MFO400 slip rings
  • MFO400 fibre optic rotary joint(fibre optic slip ring) support 4 channels fibre optics when 360°rotating. It can perfectly transmit data from stator to rotor. It is also especially suitable for occasion where it needs to transmit large volume data/signal from permanent position to rotation position on unlimited, continuous or discontinuous rotating, which can improve mechanical property,simplify system operation and avoid the rotating of turning joints destroy fibre optics.
  • Low insertion loss, high rotation speed
  • Non-contact, zero friction, long working life, single core can achieve one hundred million revolutions
  • fibre optic rotary joint and fibre optic rotary joint are small in size, in light weight, high sealing class
  • Transmitting signal by fibre optics, no leaks,no electromagnetic interference, long-distance transmission

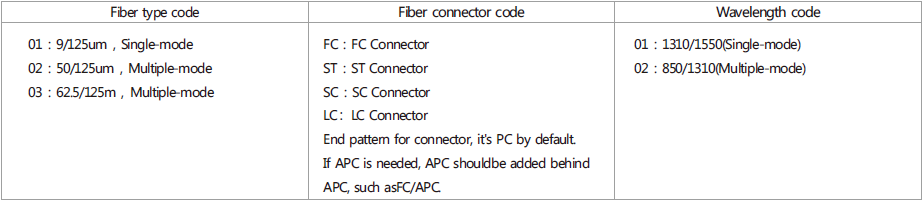

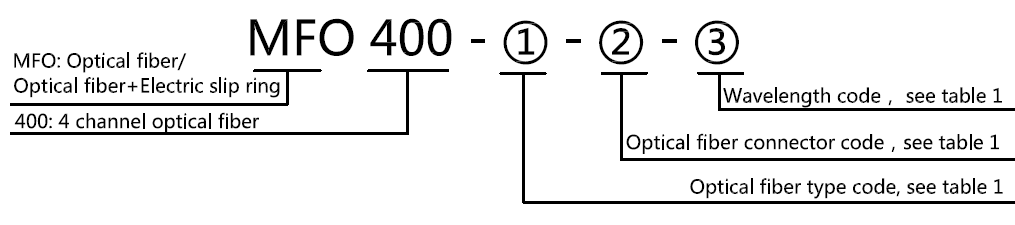

Standard series PART# Explanation

Specifications of 4 channel Fibre Optic Rotary Joint
ItemsType
Single-modeMultiple-mode
WaveWidth(nm)±100
Max insert Loss,23℃(dB)43.5
Insert Loss Ripple(dB)21
Return Loss(dB)≥50(APC)≥40(PC)
Max Power(W)0.5
Weight(g)200
Max spped(rpm)250
Working Life>200 million revs
Working Temp.(℃)-45~85
Storage Temperature(℃)-50~85
Protection gradeIP54





If you require specialized dimension for 4 channel fibre optic rotary joints, fibre optic slip rings, please contact us: technical@moflon.com
