MFO400B Series
2 Channels Optical Rotary Joints, Single-Mode or Multi-Mode
MFO400B slip rings
  • MFO400B fiber optic slip rings support 4 channel fiber optics(SM/MM). It can perfectly transmit data on 360° rotating. It is also especially suitable for occasion where it needs to transmit large volume data/signal from permanent position to rotation position on unlimited, continuous or discontinuous rotating, which can improve mechanical property,simplify system operation and avoid the rotating of turning joints destroy fiber optics.
  • Low insertion loss, high rotation speed
  • Non-contact, zero friction, long working life, single core can achieve one hundred million revolutions
  • Small in size, in light weight, high sealing class
  • Fiber optics transmitting signal, no leaks,no electromagnetic interference, long-distance transmission

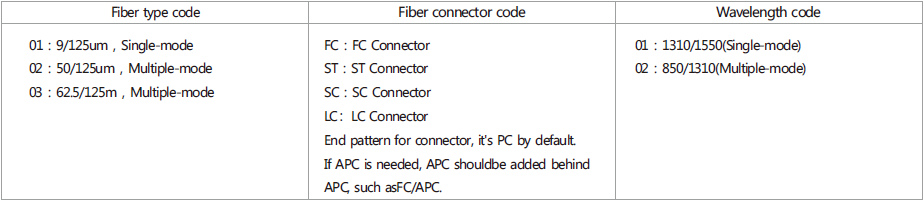

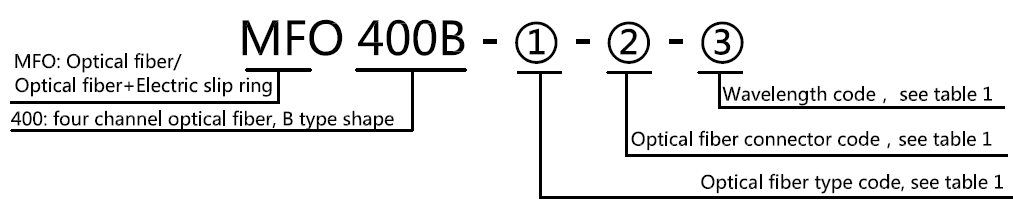

Standard series PART# Explanation

Max insert Loss,23℃(dB)43.5
Insert Loss Ripple(dB)21
Return Loss(dB)≥50(APC)≥40(PC)
Max Power(W)0.5
Max speed(rpm)250
Working Life>200 million revs
Working Temp.(℃)-45~85
Storage Temperature(℃)-50~85
Protection gradeIP54
