MHF108 Series
1 Channel Coaxial/RF/High Frequency + 1~42 Circuits Power/Signal
MHF108 slip rings
  • MHF108 series is 1 channel Coaxial/RF/High Frequency + power/signal hybrid slip rings.
    Specifically designed to support high-speed serial digital signals or analog signal transmission.
    It can support maximum transfer rate 40GHz. This series product can support single channel high frequency transmissions, also support high-frequency signal transmission combining with 24V control signal, communication signal, power supply and fluid media. High-frequency signal adopts 50Ωcharacteristic impedance RF coaxial connector.(other specified connectors are switchable, also Lead wire size are optional, such as RG178、RG316、RG174, etc.)
Standard series PART# Explanation

Specification
(RF Rotary joints) SpecificationsMechanical data
ParameterValueParameterValue
Frquency0~30GHzWorking Life50Million Revs.
Rated Power20WRotating Speed150RPM
VSWR<1.3Working Temp.-30℃~80℃
Insertion Loss0.3dbOperating Humidity0~85% RH
VSWR Ripple<0.05Contact MaterialGold-Gold
Insertion Loss Ripple0.05dbHousing MaterialAluminium Alloy
Connector TypesSMATorque0.1N.m˙+0.03/6rings
Characteristic Impedance50Ω Protection gradeIP51
Electrical data
ParameterValue
PowerSignal
Rated Voltage0~440VAC/VDC0~240VAC/VDC
Insulation Res≡1000MΩ /500VDC≡1000MΩ/500VDC
Lead WiresAWG16#TeflonAWG22#Teflon
Lead LengthStandard 300mm
Dielectric Strength500VAC@50Hz,60s
Res Noise<0.01Ω





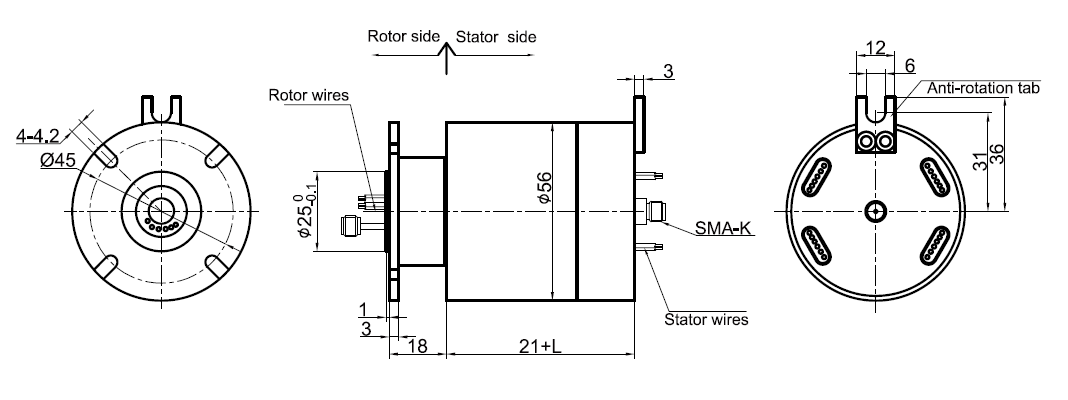

MHF108 channel RF rotary joint part list
Part#RF ChannelFrquency10ASignal/5ALength(mm)
MHF108-S061DC-30GHz0638
MHF108-P06101DC-30GHz6038
MHF108-S121DC-30GHz01254.8
MHF108-P12101DC-30GHz12054.8
MHF108-P0610-S061DC-30GHz6654.8
MHF108-P0410-S081DC-30GHz2849.2
MHF108-P0210-S101DC-30GHz21054.8
MHF108-S181DC-30GHz01871.6
MHF108-P18101DC-30GHz18071.6
MHF108-P0610-S121DC-30GHz61271.6
MHF108-P1210-S061DC-30GHz12671.6
MHF108-P0610-S181DC-30GHz61888.4
MHF108-P1210-S121DC-30GHz121288.4
MHF108-P1810-S061DC-30GHz18688.4
MHF108-S241DC-30GHz02488.4
MHF108-P24101DC-30GHz24088.4
MHF108-S301DC-30GHz030105.2
MHF108-S361DC-30GHz036122
MHF108-S421DC-30GHz042138.8

Rings and current can be customized
