GT60130 Series

Bore size 60mm, OD 130mm, 2~108 rings

Standard compact series slip ring with bore size 60mm(used for<=60mm),OD 130mm.*Attention：if required through bore <60mm，this can be solved by adding a sleeve inside the bore.

Download GT60130 Catalog Download 3D Model

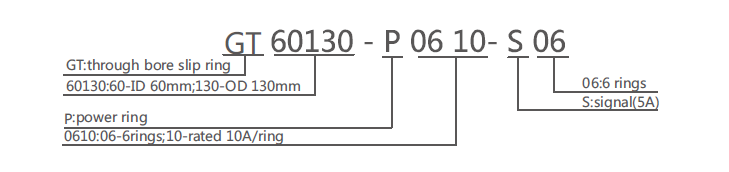

Standard series PART# Explanation

Product Quality Level Table
Products Level Code	Max speed	Working Life	Contact Material
VC	250RPM	20Million Revs.	Precious Metal
VD	600RPM	80Million Revs.	Precious Metal
VH	1000RPM	150 Million Revs	Gold-plated

Specification
Mechanical data		Electrical data
Parameter	Value	Parameter	Value
Working Life	100 Million Revs		Power	Signal
Rotating Speed	1~1200RPM	Rated Voltage	0~690VAC/VDC	0~440VAC/VDC
Working Temp.	-30℃~80℃	Insulation Res	≥1000MΩ/500VDC	≥1000MΩ/500VDC
Operating Humidity	0~85% RH	Lead Wires	AWG16#Teflon	AWG22#Teflon
Contact Material	Precious Metal	Lead Length	Standard 300mm
Housing Material	Aluminium Alloy	Dielectric Strength	1000VAC@50Hz，60s
Torque	0.1N.m;+0.03/6ring	Res Noise	<0.03Ω
Protection grade	IP51

GT60130 Series Parts# List
Part#	10A	Signal/5A	Length(mm)	Part#	10A	Signal/5A	Length(mm)
GT60130-S06	0	6	59.6	GT60130-P1810-S12	18	12	155.8
GT60130-P0210-S04	2	4	59.6	GT60130-P2410-S06	24	6	155.8
GT60130-P0410-S02	4	2	59.6	GT60130-P3010	30	0	155.8
GT60130-P0610	6	0	59.6	GT60130-S36	0	36	178.6
GT60130-S12	0	12	82.4	GT60130-P0610-S30	6	30	178.6
GT60130-P0210-S10	2	10	82.4	GT60130-P1210-S24	12	24	178.6
GT60130-P0410-S08	4	8	82.4	GT60130-P1810-S18	18	18	178.6
GT60130-P0610-S06	6	6	82.4	GT60130-P2410-S12	24	12	178.6
GT60130-P0810-S04	8	4	82.4	GT60130-P3610	36	0	178.6
GT60130-P1010-S02	10	2	82.4	GT60130-S48	0	48	224.2
GT60130-P1210	12	0	82.4	GT60130-P0610-S42	6	42	224.2
GT60130-S18	0	18	105.2	GT60130-P1210-S36	12	36	224.2
GT60130-P0210-S16	2	16	105.2	GT60130-P1810-S30	18	30	224.2
GT60130-P0410-S14	4	14	105.2	GT60130-P2410-S24	24	24	224.2
GT60130-P0610-S12	6	12	105.2	GT60130-S60	0	60	274.8
GT60130-P0810-S10	8	10	105.2	GT60130-P0610-S54	6	54	274.8
GT60130-P1010-S08	10	8	105.2	GT60130-P1210-S48	12	48	274.8
GT60130-P1210-S06	12	6	105.2	GT60130-P1810-S42	18	42	274.8
GT60130-P1410-S04	14	4	105.2	GT60130-P2410-S36	24	36	274.8
GT60130-P1610-S02	16	2	105.2	GT60130-S72	0	72	320.4
GT60130-S24	0	24	128	GT60130-P0610-S66	6	66	320.4
GT60130-P1610-S18	6	18	128	GT60130-P1210-S60	12	60	320.4
GT60130-P1210-S12	12	12	128	GT60130-P2410-S48	24	48	320.4
GT60130-P0810-S06	18	6	128	GT60130-P3610-S36	36	36	320.4
GT60130-P2410	24	0	128	GT60130-S84	0	84	369
GT60130-S30	0	30	155.8	GT60130-P1210-S72	12	72	369
GT60130-P0610-S24	6	24	155.8	GT60130F-P2410-S60	24	60	369
GT60130-P1210-S18	12	18	155.8	GT60130F-S96	0	96	414.6

Note: Power 10A and signal(5A) can combine freely, please contact customer service for more details. Our slip rings can be customized on the basis of standard slip rings. Should contact customer service for more information.
