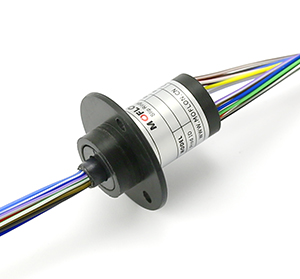

MMC195 Series
OD 12.5mm, 12 rings, signal(2A)/ring
Electrical Rotary Union
  • MMC195 is a electrical rotary union with OD 12.5mm, 12 rings, signal(2A)/ring, using gold-gold contact, to ensure the stability and working life, mainly used in the field of civil and commercial.
  • MMC1959 is the high-end electrical rotary union version corresponding to MMC195, ultra-thick gold plating processing, imported bearings, rare metal alloy brush , mainly used in military, defense and other non-civilian areas.
Standard series PART# Explanation

Product Quality Level Table
The difference between MMC195 and MMC1959:
Part#Max speedWorking lifeHousing MaterialElectrical noise①@10Rpm
MMC195250RPM>10 million RevsPlastics10mΩ
MMC19591000RPM>30 million RevsMetal4mΩ

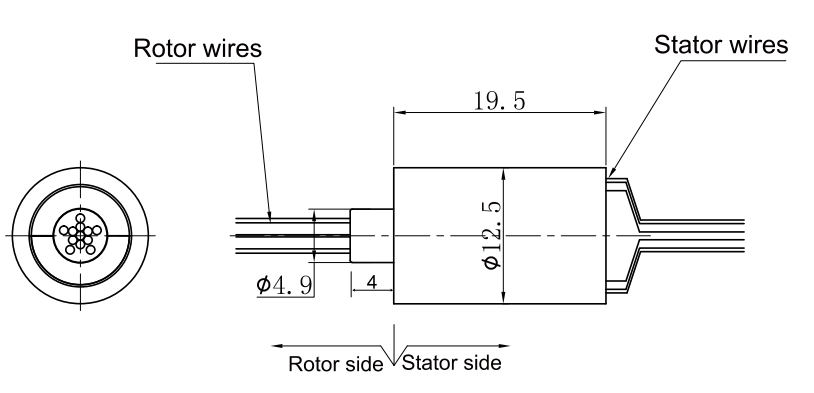

Specification of electrical rotary union
Mechanical dataElectrical data
Working LifeSee Prod Quality LevelPowerSignal
Rotating SpeedSee Prod Quality LevelRated Voltage0~220VAC/VDC0~120VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥100MΩ/220VDC≥100MΩ/150VDC
Operating Humidity0~85% RHLead WiresAWG#28 TeflonAWG#28 Teflon
Contact MaterialSee Prod Quality LevelLead LengthStandard 300mm
Housing MaterialSee Prod Quality LevelDielectric Strength500VAC@50Hz,60s
Torque0.005N.m˙+0.02N.m/6ringRes Noise<0.01Ω
Protection gradeIP51

MMC195 Series Parts# List
Part#Signal/1ATotal Wires



A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power and / or data from a stationary to a rotating structure. A slip ring is also called a electrical rotary union. The MMC195 compact electrical rotary union capsule provides up to 12, 2 amp rated contacts in a small, 1/2 inch diameter design. Color-coded lead wires are provided on both the rotor and stator to allow simplified electrical connections.
If you have special requirements for electrical rotary union, please contact customer service.
