MP310 Series
ID 12.7mm, Thickness 15.8~77mm, 2~24 rings

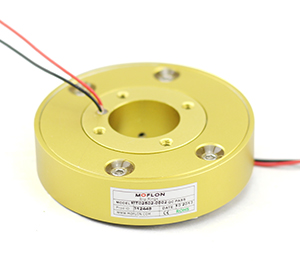

MP310 slip rings
  • MP310 pancake slip ring have a thickness from 15.8~77mm for 2~24 rings,all aluminum alloy structure,using precious metal contact material and gold-plated processing, It can transmit stable signal and power with small resistance fluctuations.
    Designed for min thickness requirements,when thickness is restrictive but diameter is less restrictive.

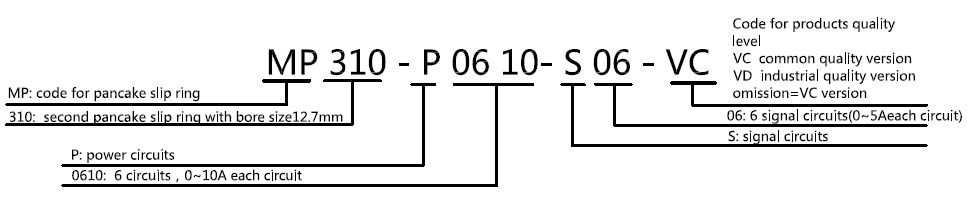

Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax sppedWorking LifeContact Material
VC60RPM3Million Revs.Precious Metal
VD200RPM10Million Revs.Precious Metal

Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working LifeSee Prod Quality LevelPowerSignal
Rotating SpeedSee Prod Quality LevelRated Voltage0~440VAC/VDC0~240VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG16#TeflonAWG22#Teflon
Contact MaterialSee Prod Quality LevelLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength500VAC@50Hz,60s
Torque0.05N.m;+0.03/6ringRes Noise<0.01Ω
Protection gradeIP51

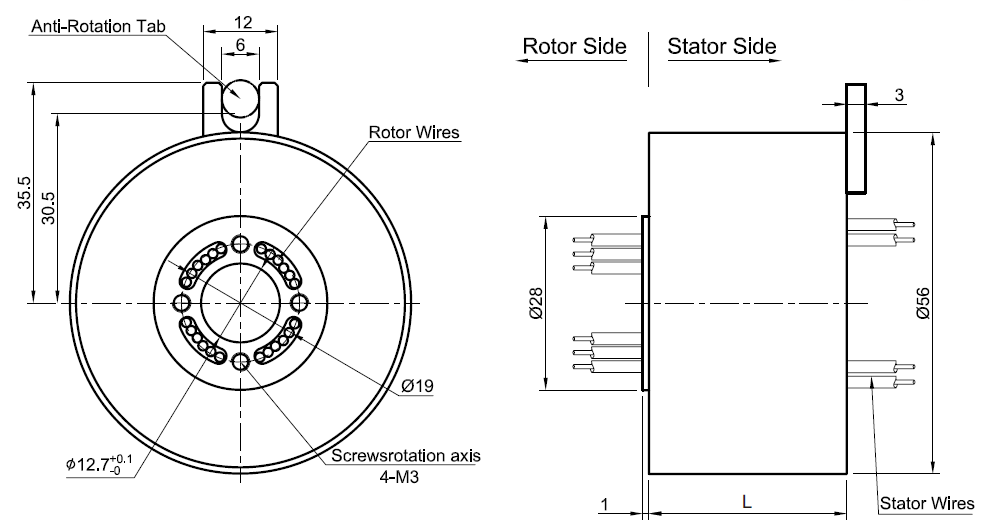

MP310 series pancake slip ring
Part#Signal/5A10A20ALength(mm)
MP310-S0220015.8
MP310-P021002015.8
MP310-P0210-S0222021.4
MP310-P041004021.4
MP310-S0660027
MP310-P061006027
MP310-P062000627
MP310-P0210-S0442027
MP310-S12120043.8
MP310-P1210012043.8
MP310-P1220001243.8
MP310-P0610-S0666043.8
MP310-P0620-S0660643.8
MP310-S18180060.6
MP310-P1810018060.6
MP310-P0610-S12126060.6
MP310-P1210-S06612060.6
MP310-P0810-S10108060.6
MP310-S24240077.4
MP310-P2410024077.4
MP310-P0610-S18618077.4
MP310-P1210-S121212077.4

Through bore size,total circuits and current can be customized,please contact sales
